Replacing Tank Level Sensor

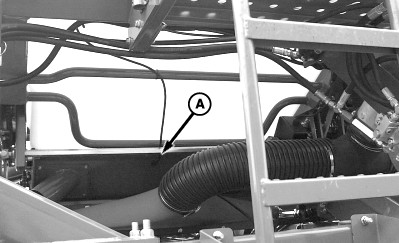

1. Disconnect sensor harness (A).


A-Sensor Harness

A49580DS

OUO6023,00017CC -19-18MAR03-1/2

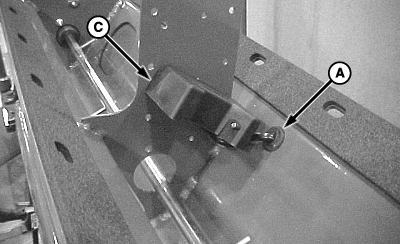

2. Remove grommet (A).

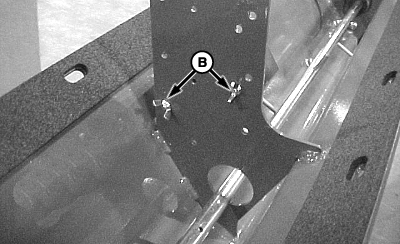

3. Remove and retain cap screws and wing nuts (B).

4. Remove sensor (C).

NOTE: Sensor is factory installed at lowest setting. For earlier warning, sensor can be moved higher up on plate.

5. Install new sensor using cap screws and wing nuts removed earlier.

6. Route harness through hole and install grommet (A).

7. Connect sensor harness.


A-Grommet
B-Nut
C-Sensor

A49177
A49177A

OUO6023,00017CC -19-18MAR03-2/2
