Low-Pressure Drain Connection

IMPORTANT: To avoid damage to fan motor, tractor must be equipped with a low-pressure drain connection (LESS THAN 172 kPa [1.72 bar] [25 psi]), compatible with Case Drain Connection Kits. See Case Drain Connection Kits table.

Only the connection kits listed in the Case Drain Connection Kits table can be used on John Deere tractors. If low-pressure drain connection kit is already installed, ensure it matches what is listed on table.

Order one of the following kits when a John Deere tractor is used, or see tractor manufacturers dealer for a suitable connection kit.

Case Drain Connection Kits
Tractor Model Kit Number
50-60 Series Row Crop BA30132
50 Series 4WD BA30132
60 and 70 Series 4WD BA30133
7000, Ten Series BA30218
7720, 7820 and 7920 Tractors BA30221
8000, 8000T, Ten Series BA30219
9000, 9000T Series BA30220



NOTE: John Deere Connection Kits include Installation Instructions.

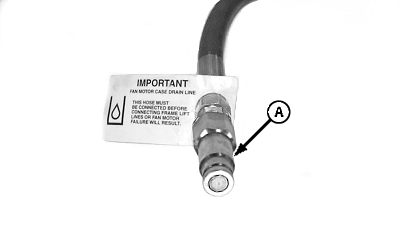

A53393


A-Connection Kit

OUO6030,00003CB -19-08FEB05-1/1
