Detaching Machines From Tractor

causym CAUTION: To help prevent severe injury or death to you or someone else:

Keep all persons away from machine when raising and lowering wings.

Always locate machine on level ground when raising and lowering wings.

Never raise or lower wings when moving.

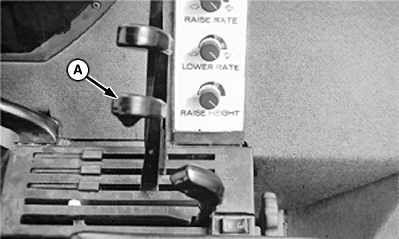

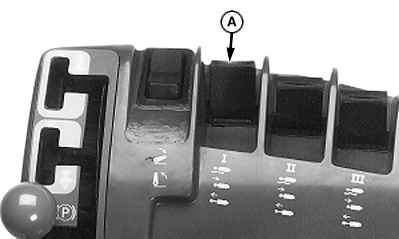

1. With transmission in "park", start tractor engine and pull SCV I tractor control lever (A) rearward to raise openers.


A-SCV I Tractor Control Lever

N45491

With Mechanical SCV Controls

N48107

With Electro/Hyd SCV Controls

OUO6030,00003D0 -19-10FEB05-1/6

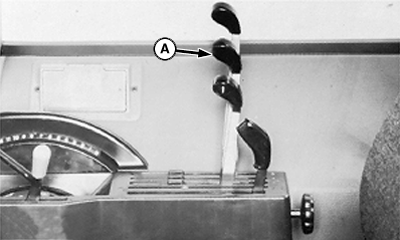

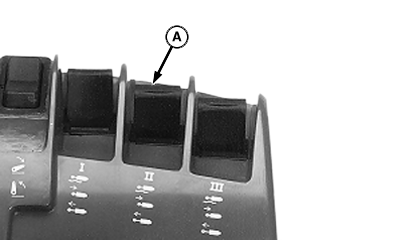

2. Move SCV II tractor control lever (A) rearward to fold wings fully.


A-SCV II Tractor Control Lever

A25573

With Mechanical SCV Controls

N48108

With Electro/Hyd SCV Controls

OUO6030,00003D0 -19-10FEB05-2/6

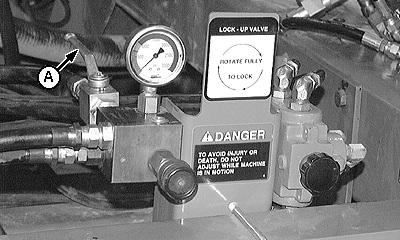

3. Close hydraulic lock-up valve (A) on machine.


A-Hydraulic Lock-Up Valve

A43336

OUO6030,00003D0 -19-10FEB05-3/6

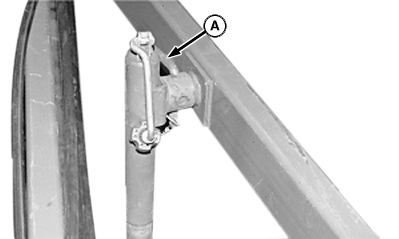

4. Attach hitch jack (A) in storage position with pins.


A-Hitch Jack

N40112

Seeding Tool

OUO6030,00003D0 -19-10FEB05-4/6

causym CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

Mechanical SCV Control: Shut off tractor engine and work levers back and forth to relieve pressure before disconnecting hoses.

Electro/Hydraulic SCV Control: With tractor engine running, place SCV control levers in "float" position to relieve pressure before disconnecting hoses.

IMPORTANT: Wings may gradually lower if pressure is not relieved from wing fold hydraulic cylinders. Temperature increases or sunlight can cause thermal expansion of hydraulic fluid. Always relieve pressure before parking or storing machine.

5. (If Wings are Folded) Before disconnecting folding cylinder hydraulic hoses, relieve pressure by either positioning SCV II control lever (A) in "float" position (with Electro/Hyd SCV Control) with tractor engine running or turn tractor engine off and cycle lever (A) back and forth three times (with Mechanical SCV Control).

A25573

With Mechanical SCV Controls

N48108

With Electro/Hyd SCV Controls


A-Control Lever

OUO6030,00003D0 -19-10FEB05-5/6

causym CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

Mechanical SCV Control: Shut off tractor engine and work levers back and forth to relieve pressure before disconnecting hoses.

Electro/Hydraulic SCV Control: With tractor engine running, place SCV control levers in "float" position to relieve pressure before disconnecting hoses.

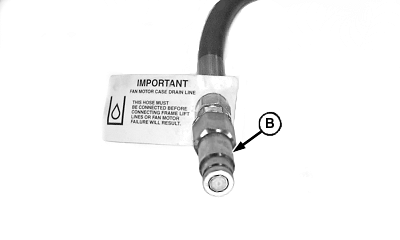

IMPORTANT: Case drain hose (B) should be removed last to avoid damage to motor seals.

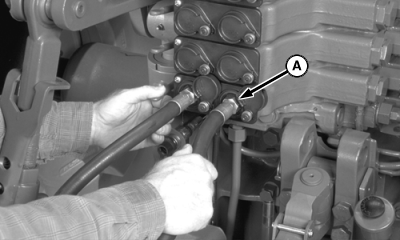

6. Remove hydraulic hoses (A) and electrical connectors from tractor outlets and cover receptacles. Place hoses and cables in storage positions on hitch bracket.

7. Remove safety chain and hitch pin.

8. Drive tractor away from machine.


A-Hydraulic Hoses
B-Case Drain Hose

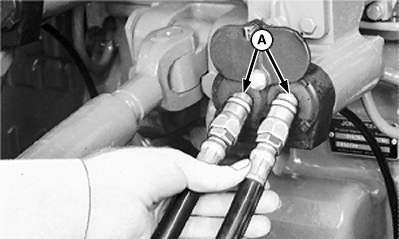

RW5887

With Mechanical SCV Controls

RW55304

With Electro/Hyd SCV Controls

A54065

Case Drain Hose

N45567

Seeding Tool

OUO6030,00003D0 -19-10FEB05-6/6
