Using Optional Auxiliary Hydraulics

CAUTION: Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before attaching hydraulic hoses to couplers.

Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage the hydraulic system.

Before connection is made to auxiliary hydraulic couplers, place control lever for fan in "FLOAT" position.

Optional auxiliary hydraulic couplers (A) are available for use for auger when filling tanks. Hydraulic oil is supplied to auxiliary hydraulics from the tractor's SCV, through the fan/auger selector valve.

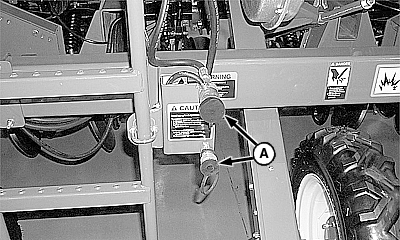

A-Auxiliary Hydraulic Couplers

OUO6030,00003D7 -19-09FEB05-1/2

Fan/Auger selector valve (A) is used to direct hydraulic oil to either the fan motor or to the auxiliary hydraulic couplers.

FAN: Push valve handle in for fan operations.

AUGER: Pull valve handle out for auger operations.

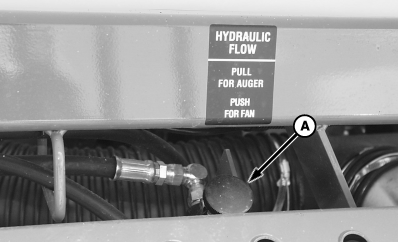

A-Fan/Auger Selector Valve

OUO6030,00003D7 -19-09FEB05-2/2
