Lock-Up Rockshafts and Openers

causym CAUTION: Hydraulic failure can allow openers to fall rapidly, causing injury or death. To avoid hazard, always lock openers in raised position before adjusting, lubricating or servicing machine.

IMPORTANT: Hydraulic hoses between the lift cylinders and hydraulic lock-up valves should be inspected frequently for wear or damage. Contact your John Deere dealer for replacement hoses.

  • Hydraulic Lock-Up Valve:

    Fully retract rockshaft/opener cylinders and close hydraulic lock-up valve (A).


    A-Hydraulic Lock-Up Valve

    N39645
    A43336

    Valve Shown in Open Position

OUO6030,00003E1 -19-30MAR04-1/2

  • Mechanical Lock-Up:

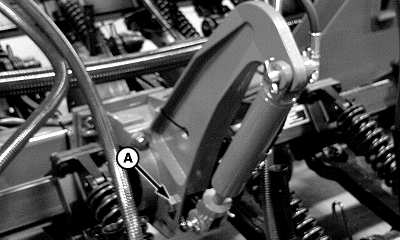

    If positive mechanical lock-up is needed, use cap screw (A) to lock each rockshaft cylinder.


A-Cap Screw

    A47155
