Operating Tank Lids

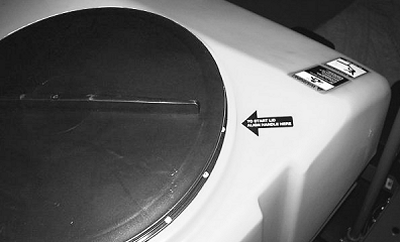

40 Ft and 42 Ft Machines

To open, turn lid counterclockwise. To close lid, line up handle with arrow and turn clockwise.

30 Ft and 36 Ft Machines

To open, unhook latches and using center prop rod swing lid back and lay against tank. To close pull prop rod and rehook latches.

A49191

OUO6030,0000473 -19-08APR04-1/1
