Detaching Monitor, Control Box, and Warning Light Harness

Detach monitor harness from connector (A). Detach control box harness from connector (B). Detach warning light harness from connector (C).


A-Monitor Harness Connector
B-Control Box Harness
C-Warning Light Harness

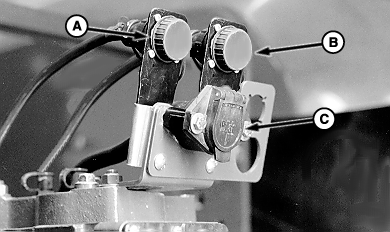

A48774

350/450 Monitor Harness Connector

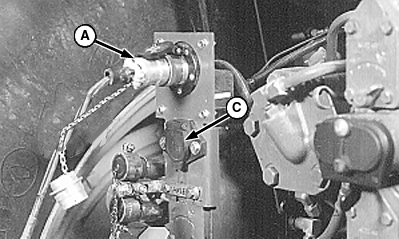

A54249

SEEDSTAR Connector

OUO6030,000047E -19-13APR04-1/1
