Checking Solenoids

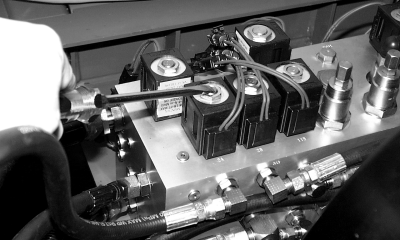

Place a small steel screwdriver close to the solenoid stud. If the coil is drawing current, a slight pull will be felt on the screwdriver when the proper switch is pushed on the control console.

If no magnetic pull is felt, check to see if solenoid is receiving voltage. To check the solenoid for voltage, proceed as follows:

A47983

720016ROM,TS,A9 -19-20MAY93-1/4

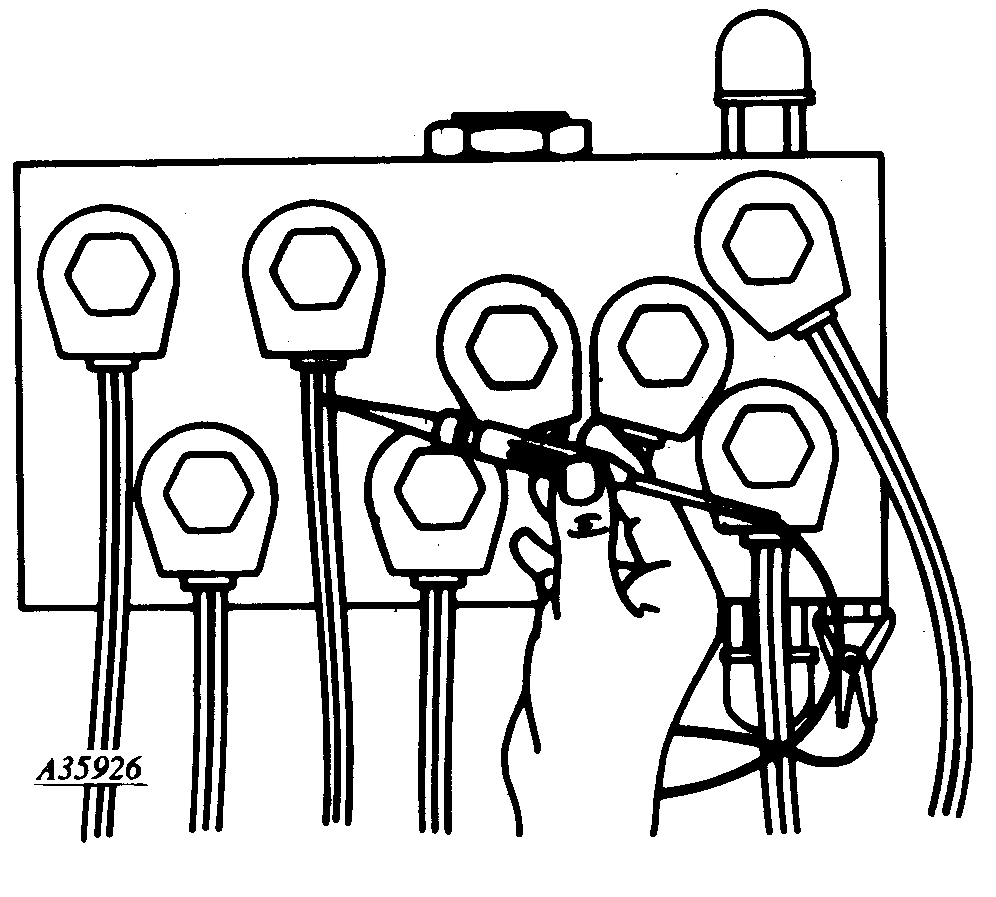

Connect clip end of voltage probe (similar to the one shown at right) to the valve block ground screw and insert the probe into the solenoid wire as shown at right. The light on the probe should come on when the proper switch is pushed on the control console.

If the light on the probe does not come on, this could indicate a break in the planter harness. See your John Deere dealer.

If the light on the probe does come on, this indicates the solenoid is receiving voltage from the control console but the solenoid is not drawing current. This could be caused by:

  • Defective solenoid
  • Lack of contact between valve threads and valve block
  • Lack of contact between the coil and the wire leads

To check for a defective solenoid, proceed as follows:

A35926

720016ROM,TS,A9 -19-20MAY93-2/4

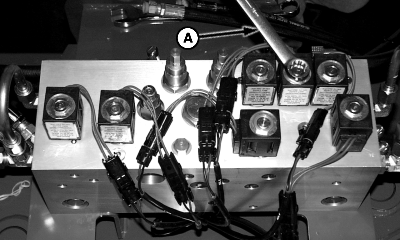

Using wrench (A), remove nut, thin washer if any, and cover from solenoid (some solenoid covers may have a thin washer beneath the cover which should also be removed).


A-Wrench

A47959

720016ROM,TS,A9 -19-20MAY93-3/4

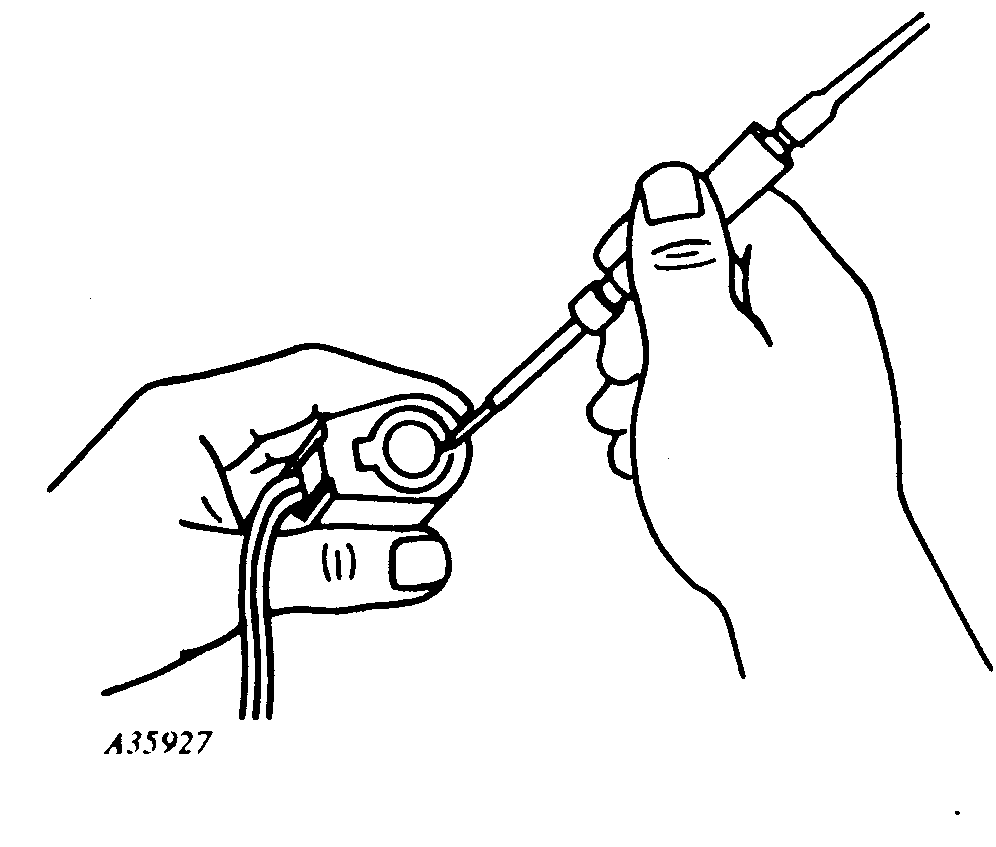

Lift solenoid from valve. Place probe on metal ring on solenoid and clip end of probe to ground. If light does not come on, solenoid is defective. If light does come on and the function still does not work, solenoid may not be making contact with the valve block.

A35927

720016ROM,TS,A9 -19-20MAY93-4/4
