Installing Knockout Assembly

NOTE: The knockout wheel (A) is used to insure that irregular shaped seeds are fully released from vacuum hole. Wheel projections engage vacuum holes, forcing all seeds and foreign material to be ejected.

1. Open vacuum meter. See ACCESSING THE VACUUM METER in this section.

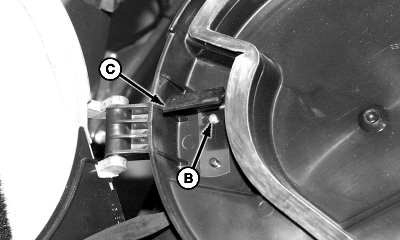

2. Loosen screw (B) and remove wiper assembly (C).

3. Install knockout assembly (D) with hardware (B) loosened in step 1.

NOTE: When closing dome, verify wheel is running in the track on seed disk.

A-Knockout Wheel
B-Screw
C-Wiper Assembly
D-Knockout Assembly

AG,OUO6074,1181 -19-04AUG00-1/1
