Seed Tubes

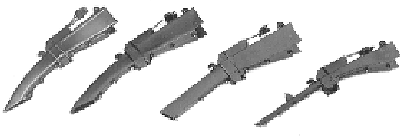

Large curved, regular curved, regular straight, and small straight seed tubes are available for all seed metering systems.

Large curved seed tubes are recommended for planting large edible beans, large peanuts and other large seeds.

NOTE: ACCUCOUNT ™ seed tube sensors are available as an option for all machines equipped with the regular curved seed tubes. The ACCUCOUNT™ sensor is a more accurate sensor than the standard sensor and is designed for high-volume crops, specifically soybeans. See your John Deere dealer for more information.

Regular curved seed tubes are recommended for planting acid-delinted cotton, corn, soybeans, sorghum, small edible beans, sugar beets and other small seeds.

Regular straight seed tube will plant the same seeds as the regular curved seed tube except it deposits the seed closer to the opener. It is recommended in light, sandy soils which tend to close quickly behind the opener or when planting small, light seeds.

Small straight seed tube is for small seeds such as sorghum. Used with the small seed tube runner it will provide better depth control in light, fluffy soils.

All seed tubes have snap-in tabs for quick seed tube placement.

To Remove, press rearward on the center front portion of the seed tube.

ACCUCOUNT is a trademark of Deere & Company

AG,OUO6074,1275 -19-04AUG00-1/1
