Setting Pump Drive Range

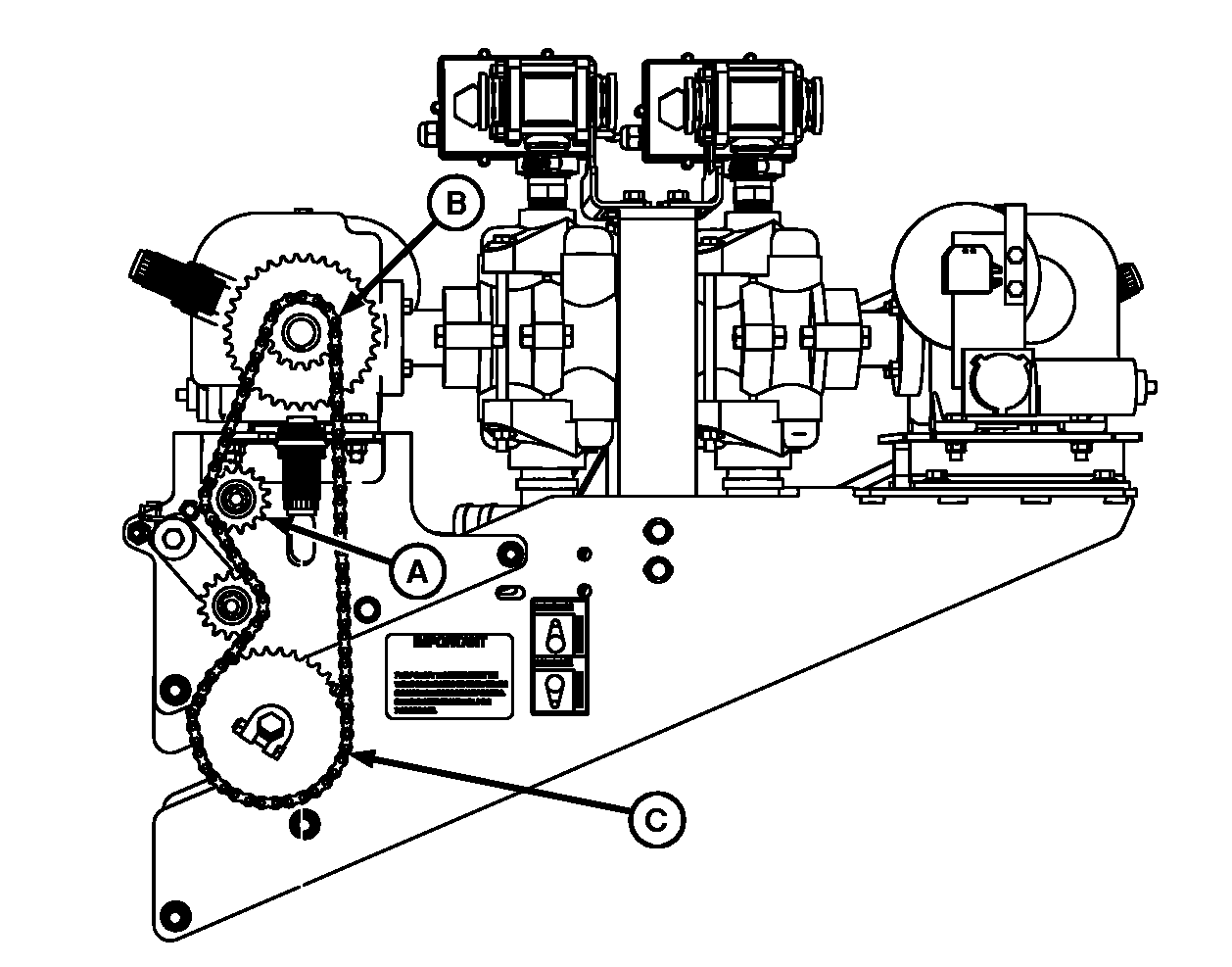

Front Pump High Range Shown

A53491

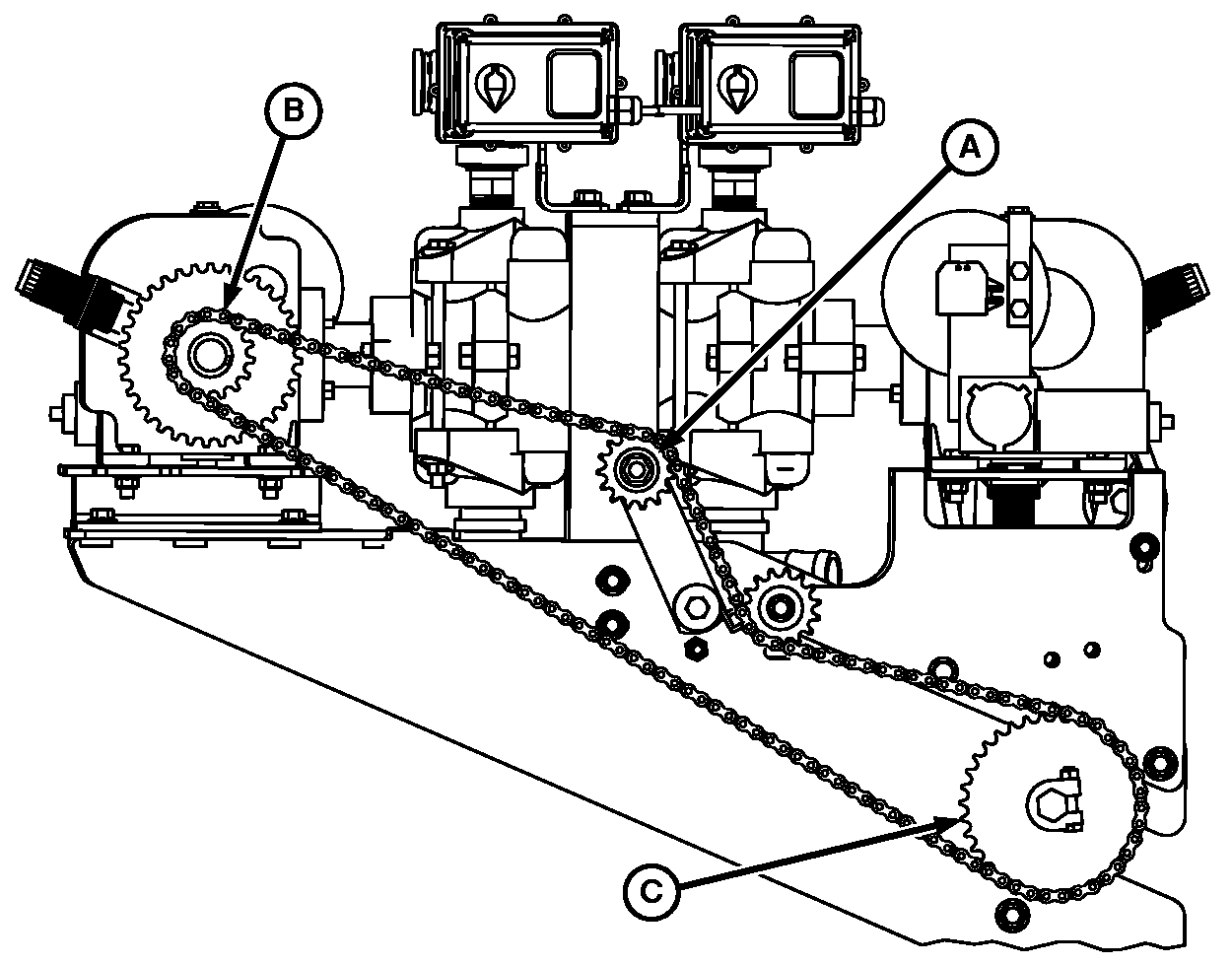

Rear Pump High Range Shown

A-Idler
B-16-Tooth Sprocket
C-35-Tooth Sprocket

HIGH DRIVE RANGE:

Release tension on chain by pulling back on tensioner (A). Install chain on 16-tooth pump sprocket (B) and on 35-tooth drive sprocket (C) and release tensioner.

AG,OUO6074,1331 -19-08APR04-1/2

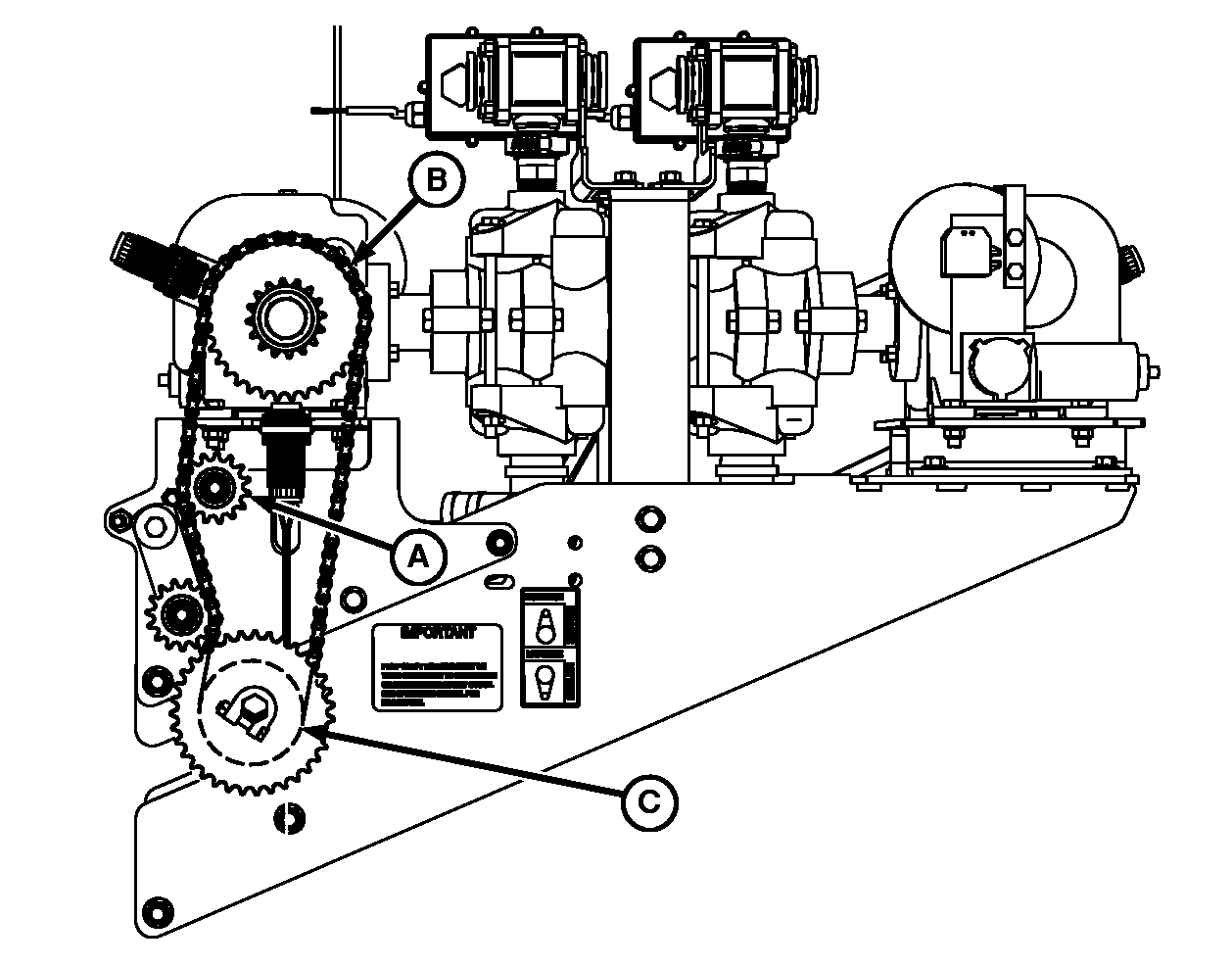

Front Pump Low Range Shown

A53492

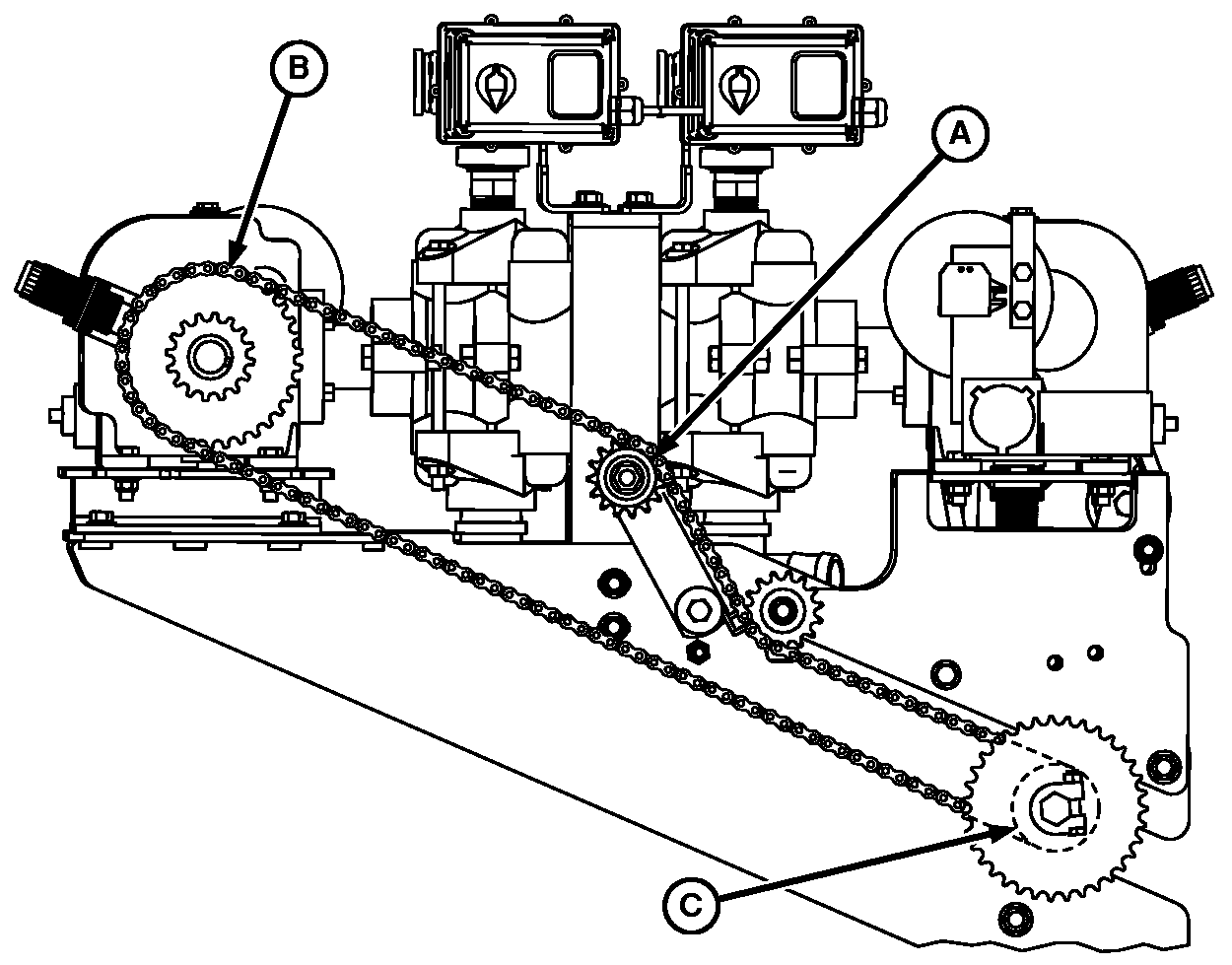

Rear Pump Low Range Shown

A-Idler
B-35-Tooth Sprocket
C-16-Tooth Sprocket

LOW DRIVE RANGE:

Release tension on chain by pulling back on tensioner (A). Install chain on 35-tooth pump sprocket (B) and on 16-tooth drive sprocket (C) and release tensioner.

AG,OUO6074,1331 -19-08APR04-2/2
