Servicing Wheel Bearings (8-Bolt Hub)

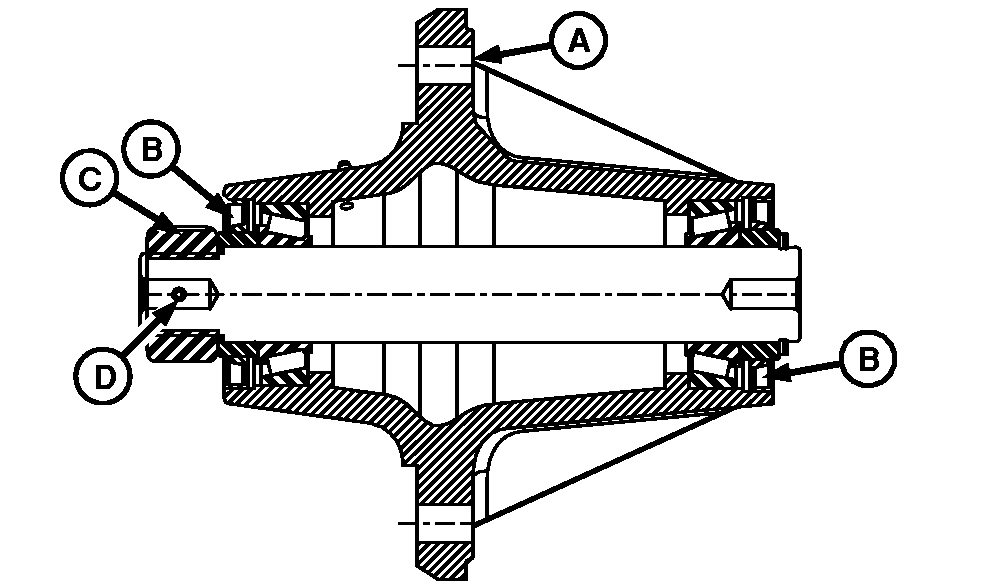

Should wheel hub (A) be disassembled for any reason, clean and repack bearing with wheel bearing grease and assemble on axle. Be careful not to damage seals (B). Install special jam nut (C) on axle shaft. Tighten jam nut until hub is solid, then back off 1/4 turn and tighten set screw (D) on jam nut.

A-Wheel Hub
B-Seals
C-Jam Nut
D-Set Screw

OUO1074,000139C -19-13SEP01-1/1
