Cleaning Out CCS Tanks

IMPORTANT: When cleaning tank for certified seed, remove all seed from tank with stiff bristled 1372 mm (4.5 ft) handle 203 mm (8 in.) wide broom.

IMPORTANT: Remove any buildup of seed treatment or talc with stiff bristled 1372 mm (4.5 ft) handle 203 mm (8 in.) wide broom.

IMPORTANT: Make sure cleanout doors on CCS tanks are closed prior to folding machine or they can be damaged.

1. Open cleanout door (A) on bottom of CCS tank.

2. Place a bucket (B) or container under cleanout door to catch remaining seed from tank.

3. Close cleanout door.

4. Repeat for all other cleanout doors.

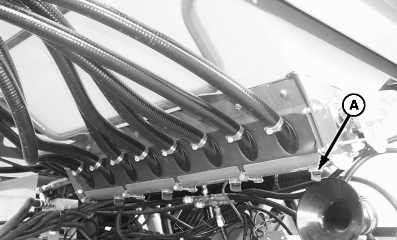

A-Cleanout Door

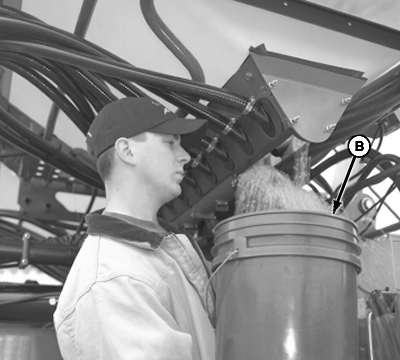

B-Bucket

OUO1074,000140B -19-16AUG02-1/1
