Partially Cleaning Out CCS Tanks

To remove only a portion of seed from CCS tanks, there is a small variable cleanout door that can be opened or closed to control the amount of seed being removed.

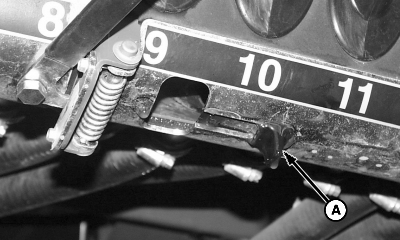

Slide door (A) until desired amount of seed is coming out.

A-Door

OUO1074,0001425 -19-16OCT03-1/1
