Changing To High or Low Range-Seed Transmission

NOTE: Consult appropriate planting rate chart to determine desired sprocket combinations.

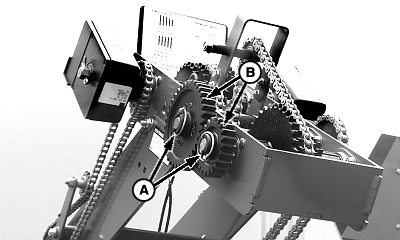

1. Remove pins (A).

2. Switch spur gears (B) to change from high range to low range settings as necessary.

A-Pins
B-Spur Gears

OUO6074,00003D4 -19-07APR04-1/1
