OMA83931: 1770NT CCS 24-Row Narrow Planter With PRO-SERIES™XP Row Units, Block File: OUO6074_00003D9_19

Lubrication-Every 10 Hours or Daily

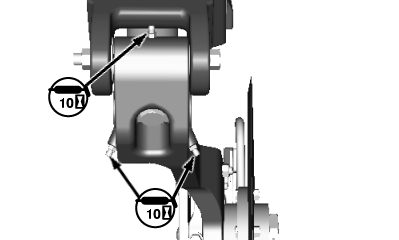

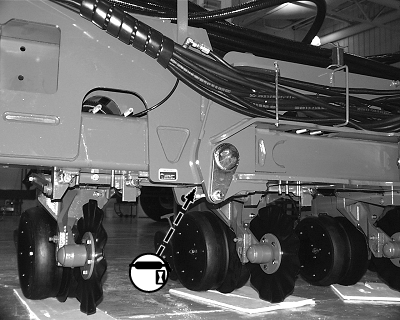

Gauge Wheels

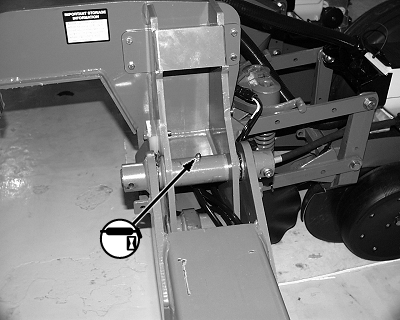

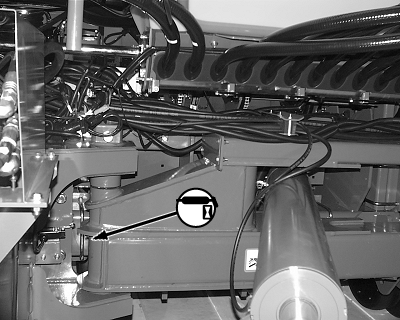

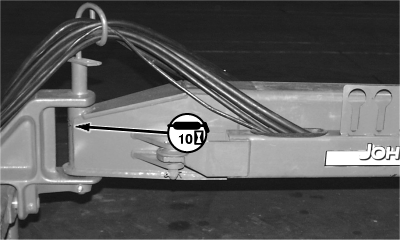

Hitch Pivot

Hitch Pivot

Tillage Support Bracket (If Equipped)

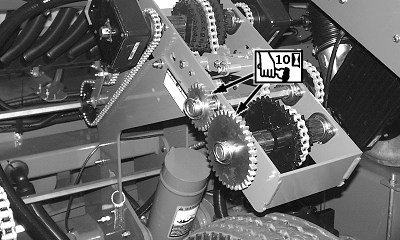

Variable Rate Pump Shafts (If Equipped)

Frame Mounted Fertilizer Opener (If Equipped)

OUO6074,00003D9 -19-29JUL05-1/6

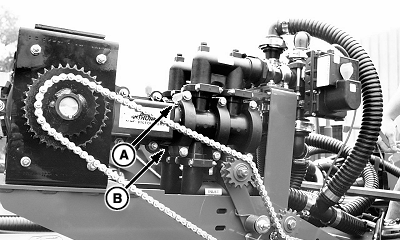

Cover weep hole (B) tightly with your finger. Pump grease into fitting (A) until the pressure pushes the grease past your finger. Repeat on other pump.

A-Grease Fitting
B-Weep Hole

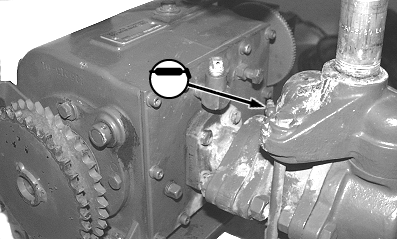

Fixed Rate Pump Shafts (If Equipped)

OUO6074,00003D9 -19-29JUL05-2/6

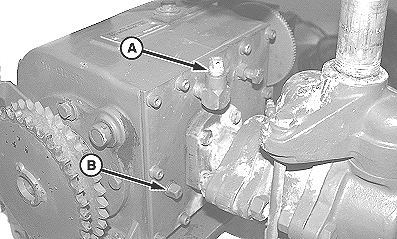

Variable Rate Pumps (If Equipped)

1. Lower machine to plant position before checking oil level.

2. Remove vent plug (A) and check plug (B).

3. Fill crankcase with TY6296 SAE 80W90 GL-5 gear lube or equivalent through vent port until lube is level with check port.

4. Install plugs.

5. Repeat on second pump.

A-Vent Plug
B-Check Plug

OUO6074,00003D9 -19-29JUL05-3/6

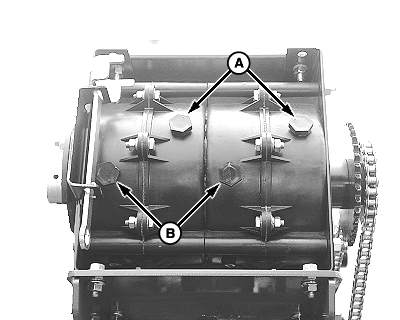

Fixed Rate Pumps (If Equipped)

1. Lower machine into plant position before checking oil level.

2. Remove fill plugs (A) and check plugs (B) from both pump crankcases.

3. Fill EACH crankcase with SAE 30 TY22070 TORQ-GARD SUPREME ™ engine oil or equivalent at fill ports until oil is level with check ports.

4. Install plugs.

A-Fill Plugs
B-Check Plugs

TORQ-GARD SUPREME is a trademark of Deere & Company

OUO6074,00003D9 -19-29JUL05-4/6

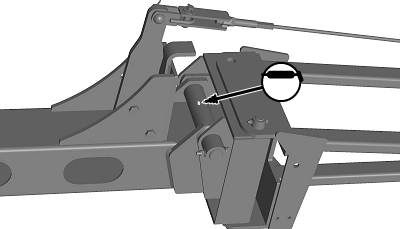

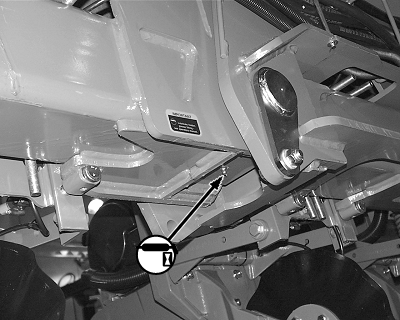

Frame Fold Point

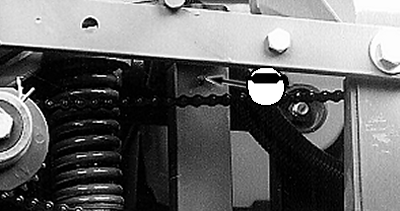

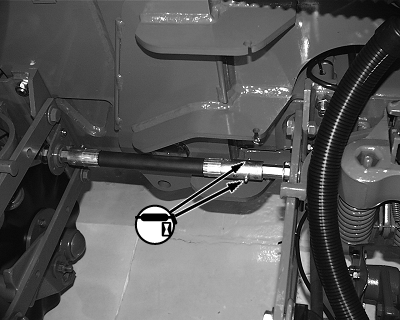

Flex Shaft

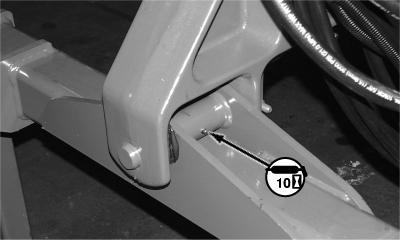

Wing Flex Point

Wing Flex Point

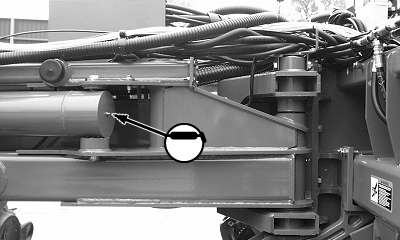

Fold Cylinder

Smear A Small Amount Of Grease

OUO6074,00003D9 -19-29JUL05-5/6

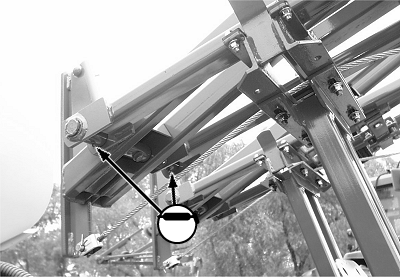

Marker

Marker

Marker

OUO6074,00003D9 -19-29JUL05-6/6
