55-60 Series Tractor with 3 SCV's and Power Beyond

Planters Equipped with Vacuum and Variable Rate Drive

Hose Connections
Case Draina C-Must Be Connected First
Hose Identification Pressure Return
Frame Functions and CCS D E
Independent Markers/Drawbar F G
Vacuum System I H
Variable Rate Drive on Power Beyond A B
aCase drain hose MUST be attached PRIOR to any hose being connected.



causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Vacuum RETURN hose, with special tip, MUST be connected to tractor EXTEND port. This allows the motor to be shut off by placing SCV lever directly into "float" position, avoiding damaging pressure spikes. This also applies to variable rate drive when connected to an SCV.

NOTE: Planter flow control valve is used to control vacuum level.

This table shows connections for the maximum number of components when a tractor is equipped with three SCV's. If planter is not equipped with either independent markers or vacuum, variable rate drive can be moved from power beyond to an SCV.

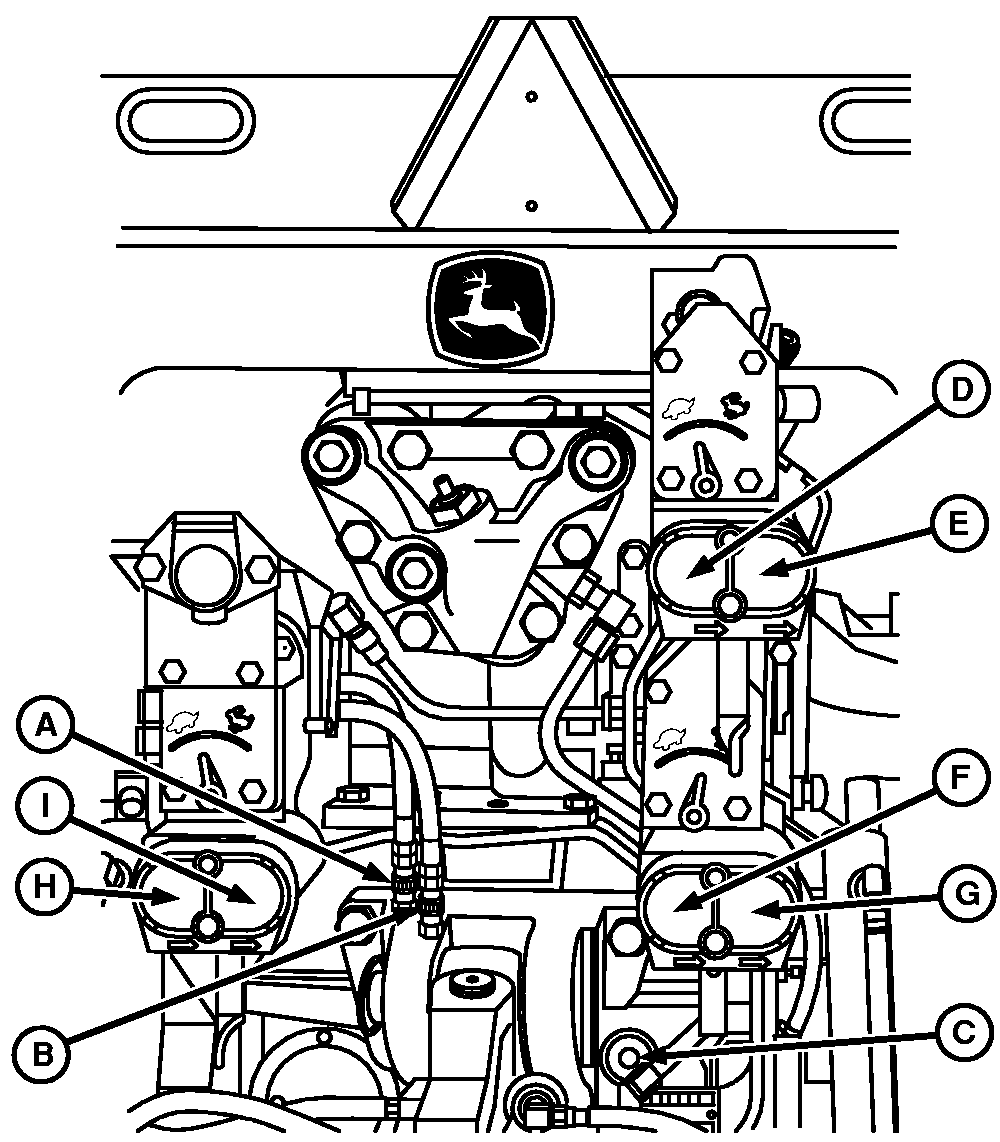

A53277

55-60 Series Tractor with 3 SCV's and Power Beyond


A-Auxiliary Pressure Port (Power Beyond Pressure)
B-Auxiliary Return Port (Power Beyond Return)
C-Sump Port (Fan Motor Case Drain Connection)
D-SCV I (Extend)
E-SCV I (Retract)
F-SCV II (Extend)
G-SCV II (Retract)
H-SCV III (Extend)
I-SCV III (Retract)

OUO6074,0000844 -19-08MAR05-1/1
