55-60 Series Tractor with 3 SCV's Less Power Beyond

Planters Equipped with Vacuum and Variable Rate Drive

Hose Connections
Case Draina A-Must Be Connected First
Hose Identification Pressure Return
Frame Functions and CCS B C
Independent Markers/Drawbar D E
Vacuum Systemb G F
Variable Rate Drivec G F
aCase drain hose MUST be attached PRIOR to any hose being connected.
bIf equipped without VRD.
cIf equipped without vacuum.



causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Vacuum and Variable Rate Drive RETURN hoses, with special tip, MUST be connected to tractor EXTEND port. This allows the motor to be shut off by placing SCV lever directly into "float" position, avoiding damaging pressure spikes.

NOTE: Planter flow control valve is used to control vacuum level.

This table shows connections for the maximum number of common components.

If planter is equipped with independent markers and vacuum, VRD would not be an option. Power beyond kits are available to control a fourth function.

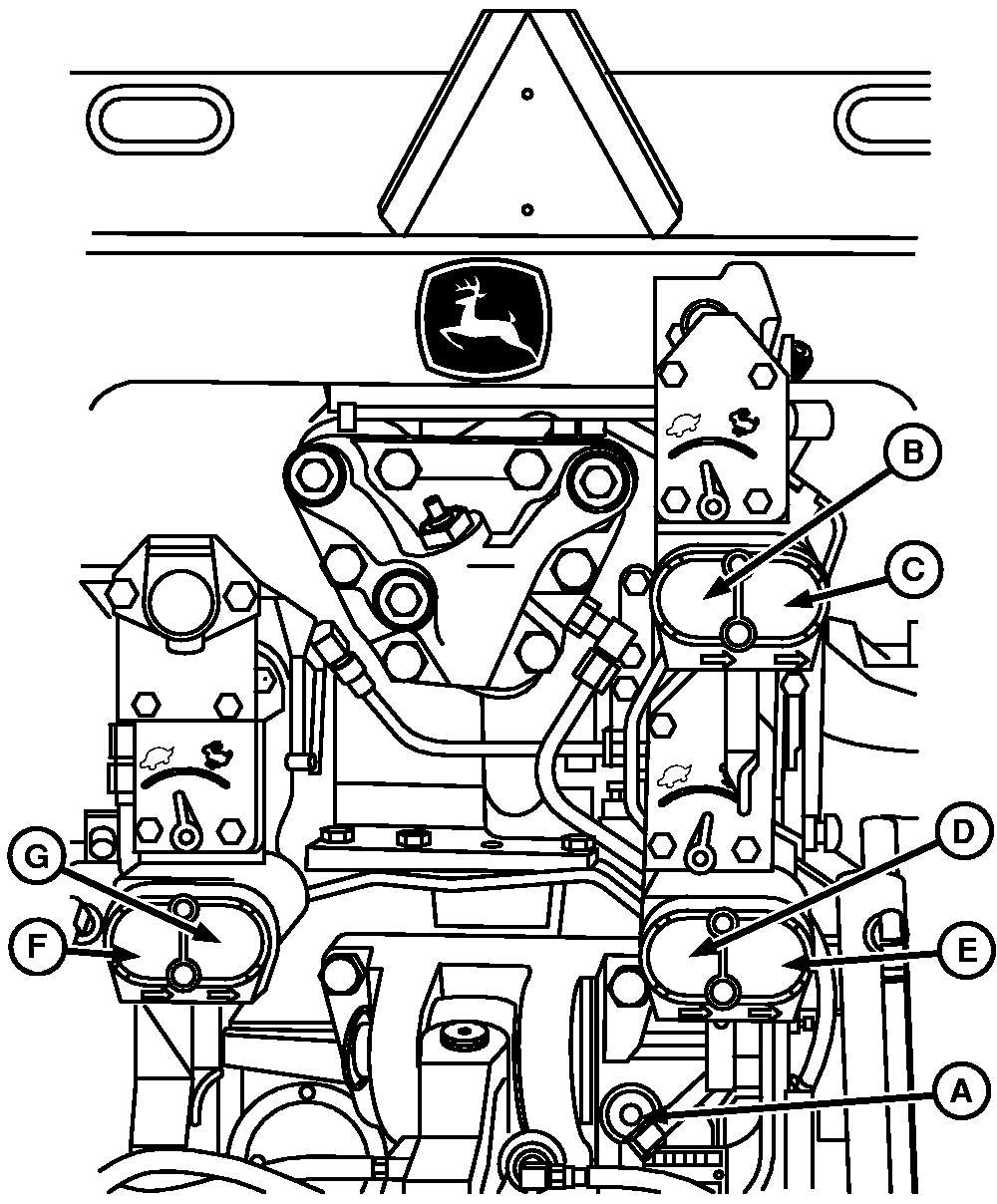

A53296

55-60 Series Tractor with 3 SCV's Less Power Beyond


A-Sump Port (Fan Motor Case Drain Connection)
B-SCV I (Extend)
C-SCV I (Retract)
D-SCV II (Extend)
E-SCV II (Retract)
F-SCV III (Extend)
G-SCV III (Retract)
