55-60 Series Tractor with 4 SCV's

Planters Equipped with Vacuum and Variable Rate Drive

Hose Connections
Case Draina A-Must Be Connected First
Hose Identification Pressure Return
Frame Functions and CCS B C
Independent Markers/Drawbar D E
Vacuum System G F
Variable Rate Drive I H
aCase drain hose MUST be attached PRIOR to any hose being connected.



causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Vacuum and Variable Rate Drive RETURN hoses, with special tip, MUST be connected to tractor EXTEND port. This allows the motor to be shut off by placing SCV lever directly into "float" position, avoiding damaging pressure spikes.

NOTE: Planter flow control valve is used to control vacuum level.

This table shows connections for the maximum number of components.

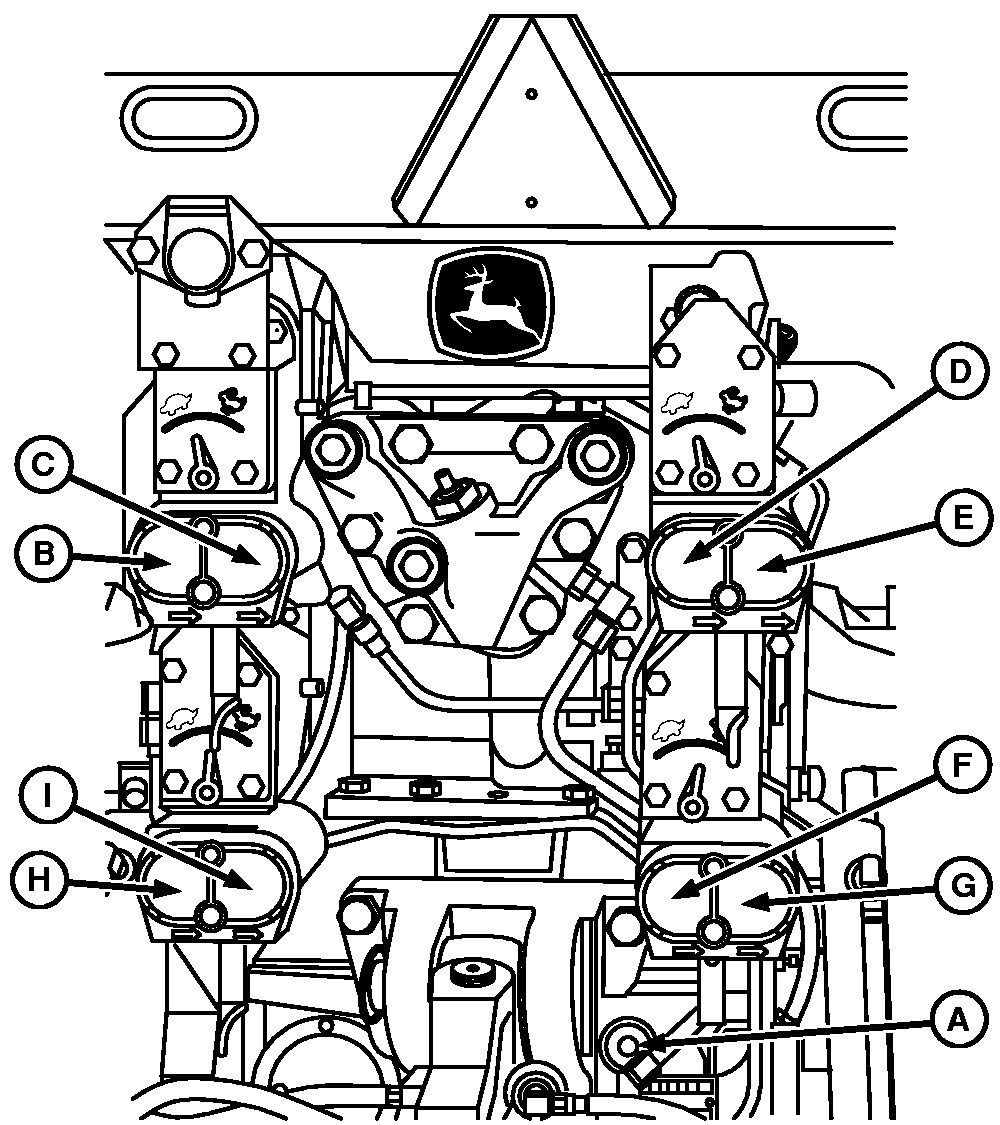

A53297

55-60 Series Tractor with 4 SCV's


A-Sump Port (Fan Motor Case Drain Connection)
B-SCV I (Extend)
C-SCV I (Retract)
D-SCV II (Extend)
E-SCV II (Retract)
F-SCV III (Extend)
G-SCV III (Retract)
H-SCV IV (Extend)
I-SCV IV (Retract)
