Removing Seed Hopper Assembly From Row Unit

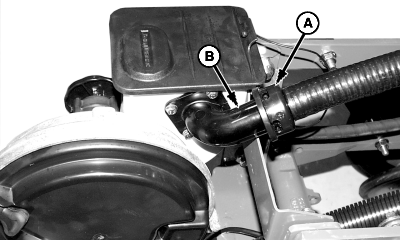

1. Rotate CCS seed delivery hose (A) counterclockwise until it unsnaps from hopper fill neck (B) and pull hose off.

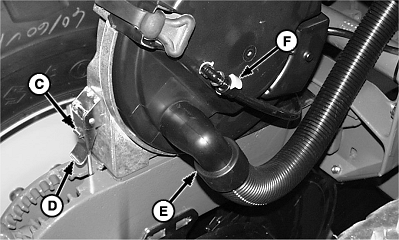

2. Push down on clip (C) while lifting up on latch (D) to unlock meter assembly from row unit.

If equipped with vacuum, remove vacuum hose (E).

If row is monitored for vacuum pressure, pull clip (F) sideways to unlock and pull sensor hose off fitting.

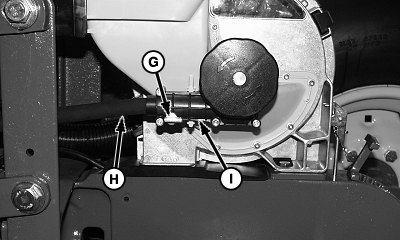

3. Rotate lock pin (G) 180 degrees until the word "locked" is on bottom.

4. Pull Pro-Shaft Drive cable (H) from gearbox housing (I) while raising rear of meter upward and rearward.


A-Delivery Hose
B-Fill Neck
C-Clip
D-Latch
E-Vacuum Hose
F-Clip
G-Lock Pin
H-Drive Cable
I-Gearbox Housing
