Installing Seed Hopper Assembly on Row Unit

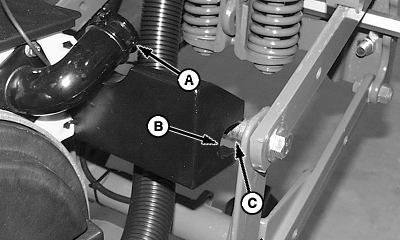

1. Push hopper alignment notch (B) over cap screw (C) (both sides).

2. Push CCS seed delivery hose onto hopper fill neck (A) and rotate clockwise until it snaps into place.

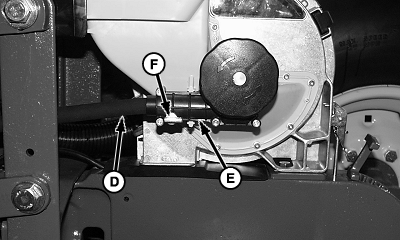

3. Push Pro-Shaft Drive cable (D) into gearbox housing (E) while rotating meter down.

4. Rotate lock pin (F) 180 degrees until the word "locked" is on top.

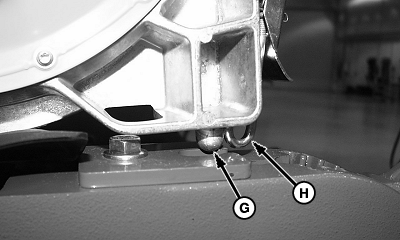

5. Make sure alignment pin (G) on bottom of meter is aligned with hole on row unit and hook (H) is latched into row unit.

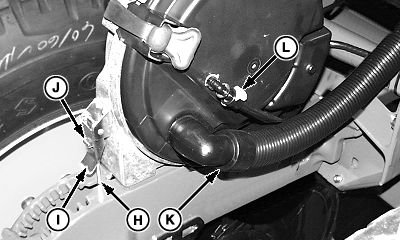

6. Position hook (H) as shown and lower latch (I) until clip (J) snaps, securing latch.

7. If equipped with vacuum, install vacuum hose (K).

8. If row is monitored for vacuum pressure, push sensor hose on fitting and push clip (L) sideways to lock hose onto fitting.


A-Hopper Fill Neck
B-Alignment Notch
C-Cap Screw
D-Drive Cable
E-Gearbox Housing
F-Lock Pin
G-Alignment Pin
H-Hook
I-Latch
J-Clip
K-Vacuum Hose
L-Clip
