OMA83931: 1770NT CCS 24-Row Narrow Planter With PRO-SERIES™XP Row Units, Block File: OUO6074_0000956_19

Setting Pump Drive Range

HIGH DRIVE RANGE:

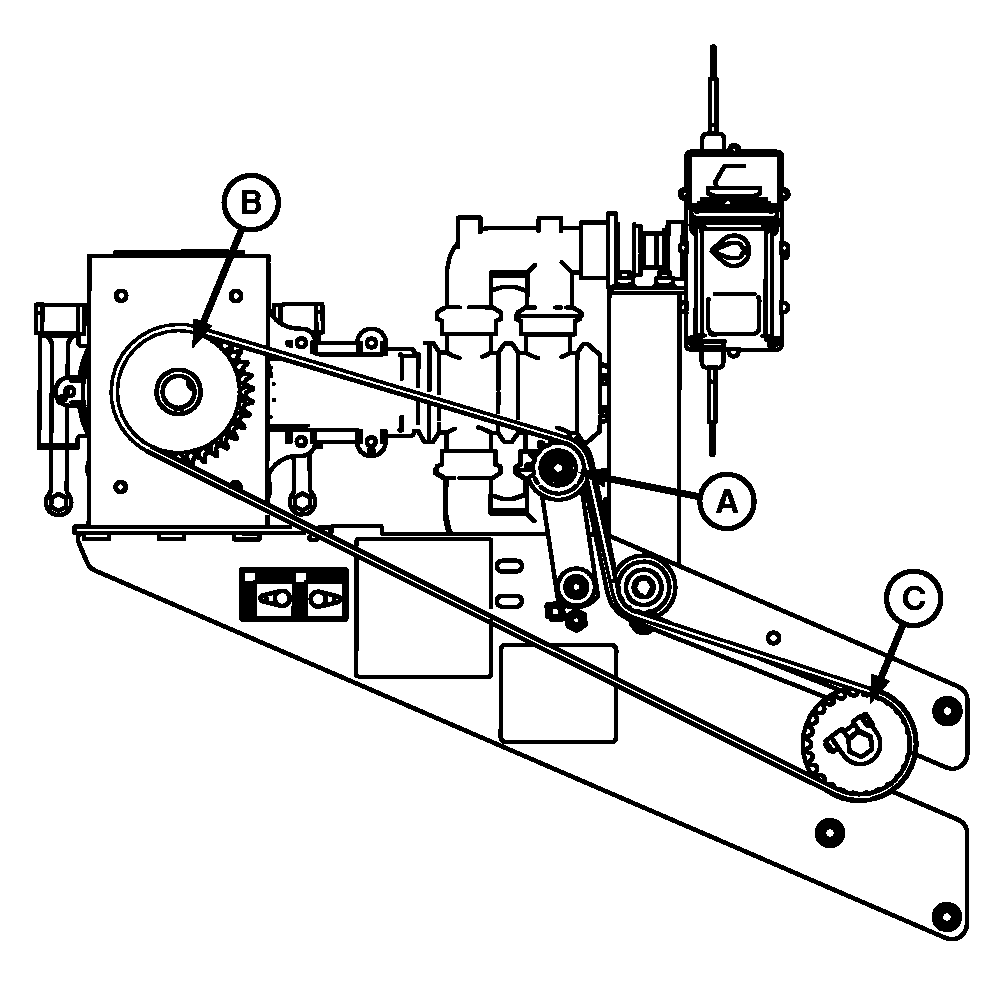

Release tension on chain by pulling back on tensioner (A). Install chain on 32-tooth pump sprocket (B) and on 35-tooth drive sprocket (C) and release tensioner.

A-Idler
B-32-Tooth Sprocket
C-35-Tooth Sprocket

High Drive Range

OUO6074,0000956 -19-04AUG05-1/2

LOW DRIVE RANGE:

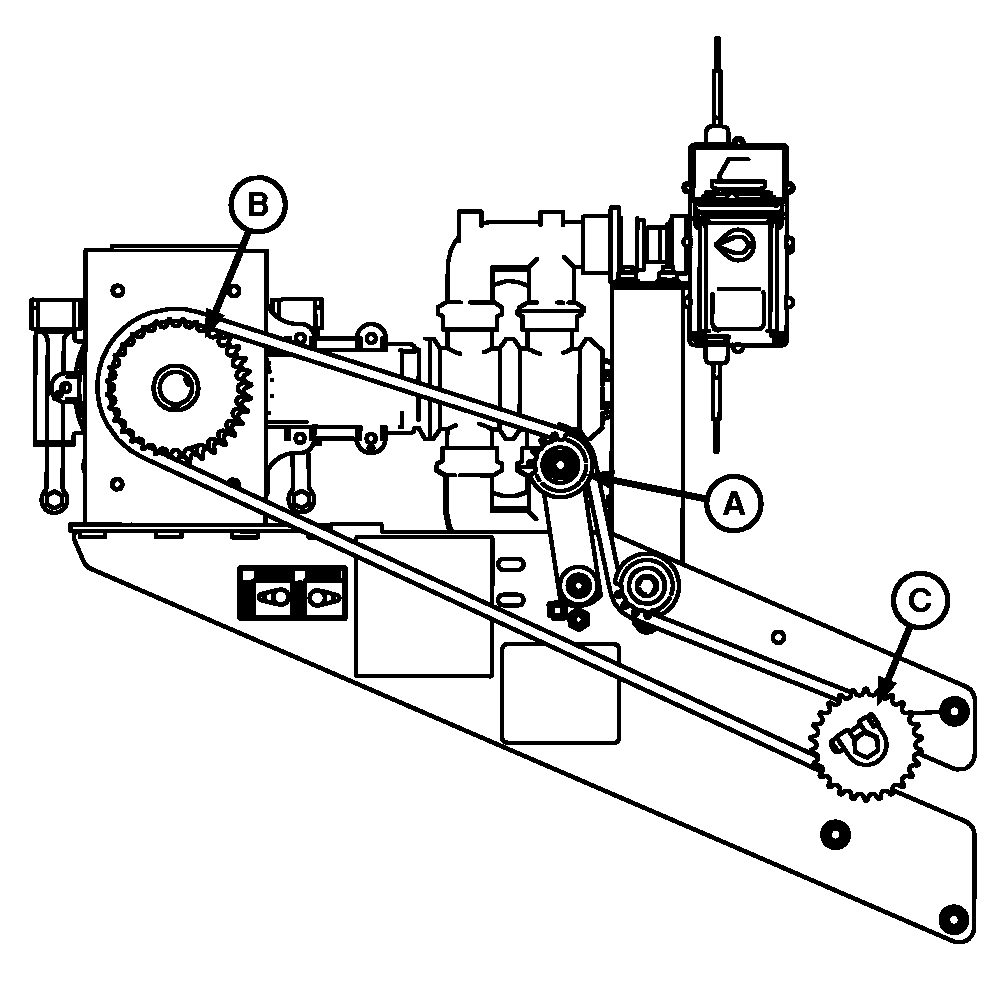

Release tension on chain by pulling back on tensioner (A). Install chain on 35-tooth pump sprocket (B) and on 24-tooth drive sprocket (C) and release tensioner.

A-Idler
B-35-Tooth Sprocket
C-24-Tooth Sprocket

Low Drive Range

OUO6074,0000956 -19-04AUG05-2/2
