Tightening Wheel Bolts (6-Bolt and 8-Bolt Hubs)

IMPORTANT: Check torque on wheel bolts prior to operation, after initial 10 hours of use and after every 50 hours.

Tighten wheel bolts (A) to specification.

1770NT CCS Wheel Bolt Torque - Specification

(Standard) 9/16 in. Wing Wheel Bolt -Torque 6-Bolt Hub 176 N·m (130 lb-ft)
(Optional) M16 Wing Wheel Bolt -Torque 8-Bolt Hub 350 N·m (258 lb-ft)
M16 Center Frame Wheel Bolt -Torque 8-Bolt Hub 350 N·m (258 lb-ft)

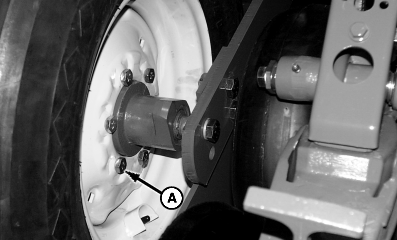

A47974

Wing Wheel Shown


A-Wheel Bolt

OUO6074,0000964 -19-03FEB04-1/1
