Protecting Hydraulic Motor Seals-Low-Pressure (Case) Drain Connection

IMPORTANT: To avoid damage to fan motors, tractor must be equipped with a low-pressure drain connection (LESS THAN 172 kPa [1.72 bar] [25 psi]), compatible with Case Drain Connection Kits. See Case Drain Connection Kits table.

IMPORTANT: Only the connection kits listed in the Case Drain Connection Kits table can be used on John Deere tractors. If low-pressure drain connection kit is already installed, ensure it matches what is listed on table.

Order one of the following kits when a John Deere tractor is used, or see tractor manufacturers dealer for a suitable connection kit.

NOTE: John Deere Connection Kits include Installation Instructions.

Case Drain Connection Kits
Tractor Model Kit Number
30-60 Series Row Crop and 50 Series 4WD BA30132
60 and 70 Series 4WD BA30133
6000 and Ten Series
7420 and 7520 Series with serial numbers ( - 016498)		 BA30216
6020, 7220, 7320, 7420, 7520 Series BA30217
7200, 7400, 7600, 7700, 7800, Ten Series BA30218
7720, 7820, and 7920 Series BA30221
8000, 8000T, 8010, 8010T, 8020, 8020T Series BA30219
9000, 9000T, 9010, 9010T, 9020, 9020T Series BA30220

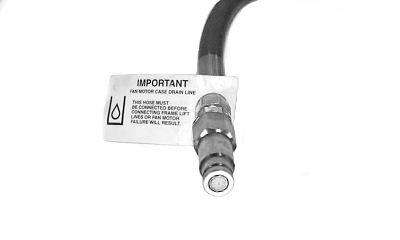

A53392

Flush Face Case Drain Hose Tip

OUO6074,0000968 -19-15JUN05-1/1
