Link Lengths (Two Point Hitch)

IMPORTANT: For added safety, always use a quick-coupler to make attaching and detaching a one-person operation.

1. Set lift links (A) as required so planter hitch is level when three point hitch is fully lowered. This will maximize transport clearance.

2. Adjust the center link (B) until quick-coupler (C) is vertical when in planting position.

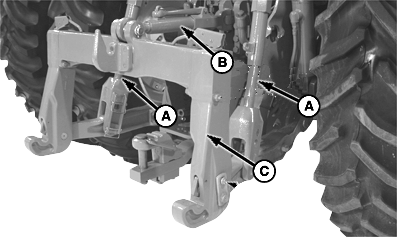

A51082

8000 Series Tractors Shown


A-Lift Lengths
B-Center Link
C-Quick-Coupler

OUO6074,000097C -19-11FEB04-1/1
