CCS SCV Lever Lock Clip (55-60 Series Row Crop Tractors)

NOTE: The clip holds lever in continuous running position to operate CCS fan.

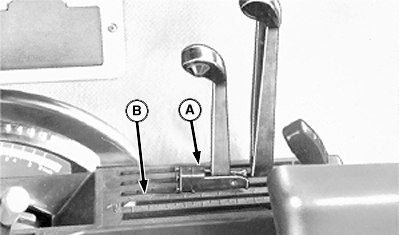

When constant hydraulic pressure is required, lever lock clip R52667 (A) must be installed over lock-out stop (B).


A-Lock Clip
B-Lock-Out Stop

RW5845

OUO6074,0000981 -19-11FEB04-1/3


1. Lift float lock-out stop (A).

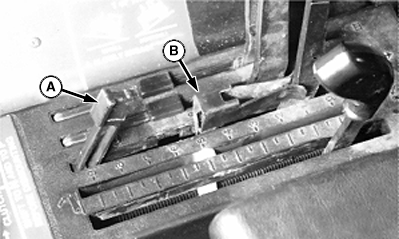

2. Squeeze sides of lock clip (B) and insert into groove as shown.


A-Lock-Out Stop
B-Lock Clip

N42122FD

OUO6074,0000981 -19-11FEB04-2/3

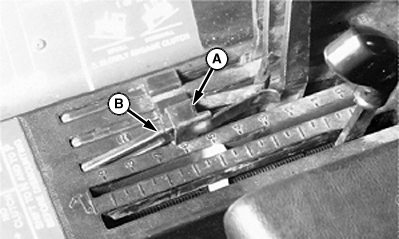

3. Slide lock clip (A) over lock-out stop (B).

4. Push lock-out stop and lock clip down.

5. Push handle forward into lock-clip when constant hydraulic pressure is needed.


A-Lock Clip
B-Lock-Out Stop

N42122FE
N42122FG
N42122FH

OUO6074,0000981 -19-11FEB04-3/3
