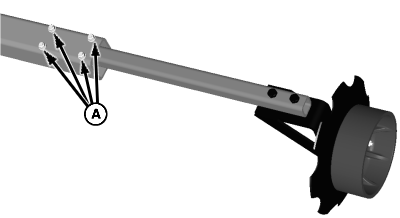

Adjusting Marker Length

A51116


A-U-Bolts

B-Dimension



1. Lower marker.

2. Loosen lock nuts on U-bolts (A) on marker and, with the arm in the down position, adjust to length shown. Dimension (B) is measured from the center line of the planting unit to the marker disk. This is an approximate dimension and should be checked in the field.

Machine Row Spacing Dimension "B"
24-Row 762 mm (30 in.) 9525 mm (375 in.)



3. Tighten lock nuts (A) to specification.

Specification

Lock Nuts -Torque 50 N·m (37 lb-ft)

OUO6074,00009AE -19-07APR04-1/1
