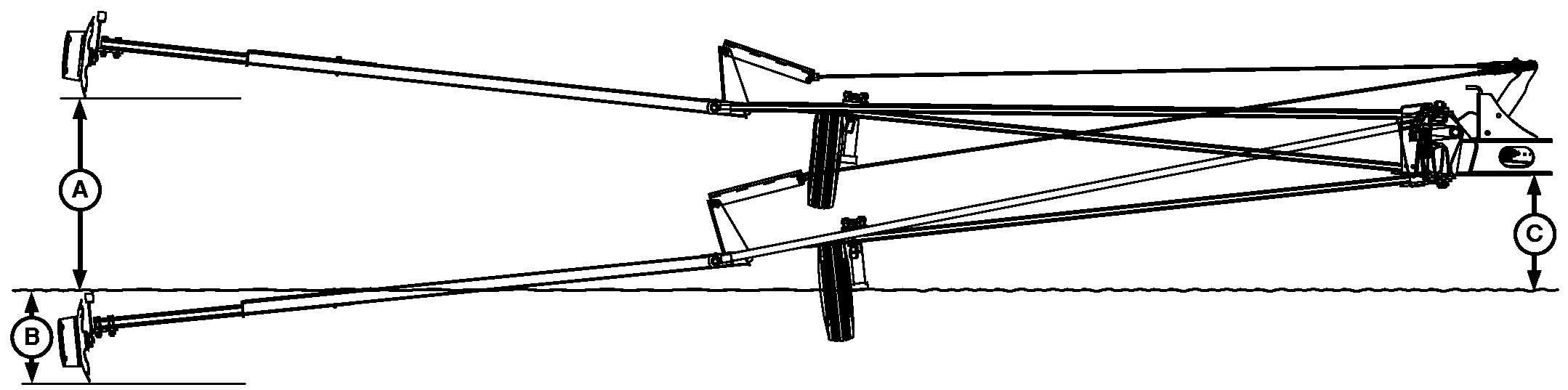

Marker Float Range

A53577


A-Dimension A

B-Dimension B

C-Dimension C



The marker has an approximate float range (see table) which should not be exceeded.

Exceeding this float range can result in damage to the marker inner arm.

If this range must be exceeded, raise the marker by operating the marker SCV lever.

Machine Row Spacing Dimension "A" Dimension "B" Dimension "C"
24-Row 76 cm (30 in.) 11° 5° 56 cm (22 in.)
(approximate distance from ground)



OUO6074,00009B0 -19-13FEB04-1/1
