Adjusting Tire Scraper

IMPORTANT: Load and tire air pressure will affect distance between tire and scraper. Tire diameter will change as tire warms up during transport. Do not set scraper closer than the specification.

IMPORTANT: To prevent damage, tire scraper must be re-adjusted anytime frame height is changed.

1. Adjust tire to correct air pressure.

2. Loosen cap screws and nuts (A).

3. Adjust clearance between tire scraper (B) and tire to specification.

Specification

Scraper to Tire (Cold) -Clearance 6 mm-10 mm (1/4 in.-3/8 in.)

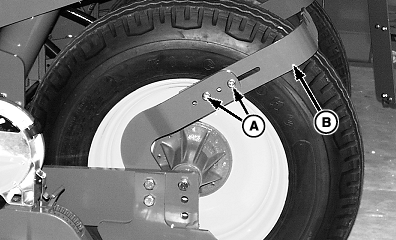

A53356

Center Frame Tire Shown


A-Cap Screws and Nuts
B-Tire Scraper

OUO6074,00009B5 -19-12MAY04-1/1
