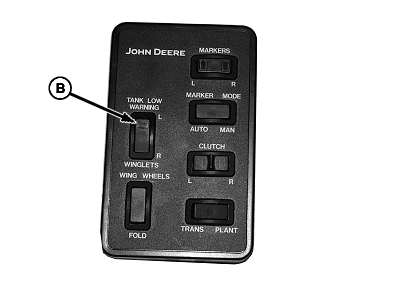

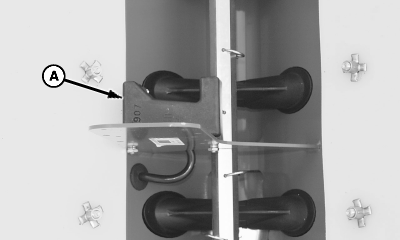

Tank Level SensorsIMPORTANT: Clean tank level sensors prior to filling CCS tanks. Use "brush" to clean seed level sensor. NOTE: Tank level sensor is factory installed at the lowest setting. Sensor can be moved higher up on bracket to receive an earlier warning. Tank level sensors (A) are optical sensors. When the sensor is exposed in either tank, the tank low warning light (B) on the frame control console will come on.
|
|
OUO6074,00009B9 -19-17FEB04-1/1 |
