Setting Vacuum Level

IMPORTANT: For some very small or large seed sizes and shapes, it may be necessary to adjust vacuum levels up or down slightly from settings shown. Always verify vacuum level with field check. The charts provided in this section are intended to be used as a guide and are accurate in most conditions. Some situations may warrant a higher or lower vacuum setting.

IMPORTANT: When using CCS Seed Delivery system, the only crops that can be delivered are corn, soybeans, sorghum, sunflower and cotton.

Vacuum level is indicated on vacuum gauge or on SEEDSTAR ™ monitor if equipped.

VACUUM LEVEL CHART
Crop Vacuum Level
Corn See Chart
Sweet Corn See Chart
Popcorn See Chart
Cotton 8 in.
Cotton Hilldrop 8 in.
Acid-Delinted Cotton 8 in.
Cotton Using Flat Edible Bean Disk See Chart
Sorghum 8 in.
High Rate Sorghum 8 in.
Oil Sunflower See Chart
Confectionary Sunflower See Chart
Soybeans 8 in.
Soybeans Using Cotton Disk 5 to 7 in.



Gauge indicator should point to vacuum level listed above, AT PLANTING SPEED.

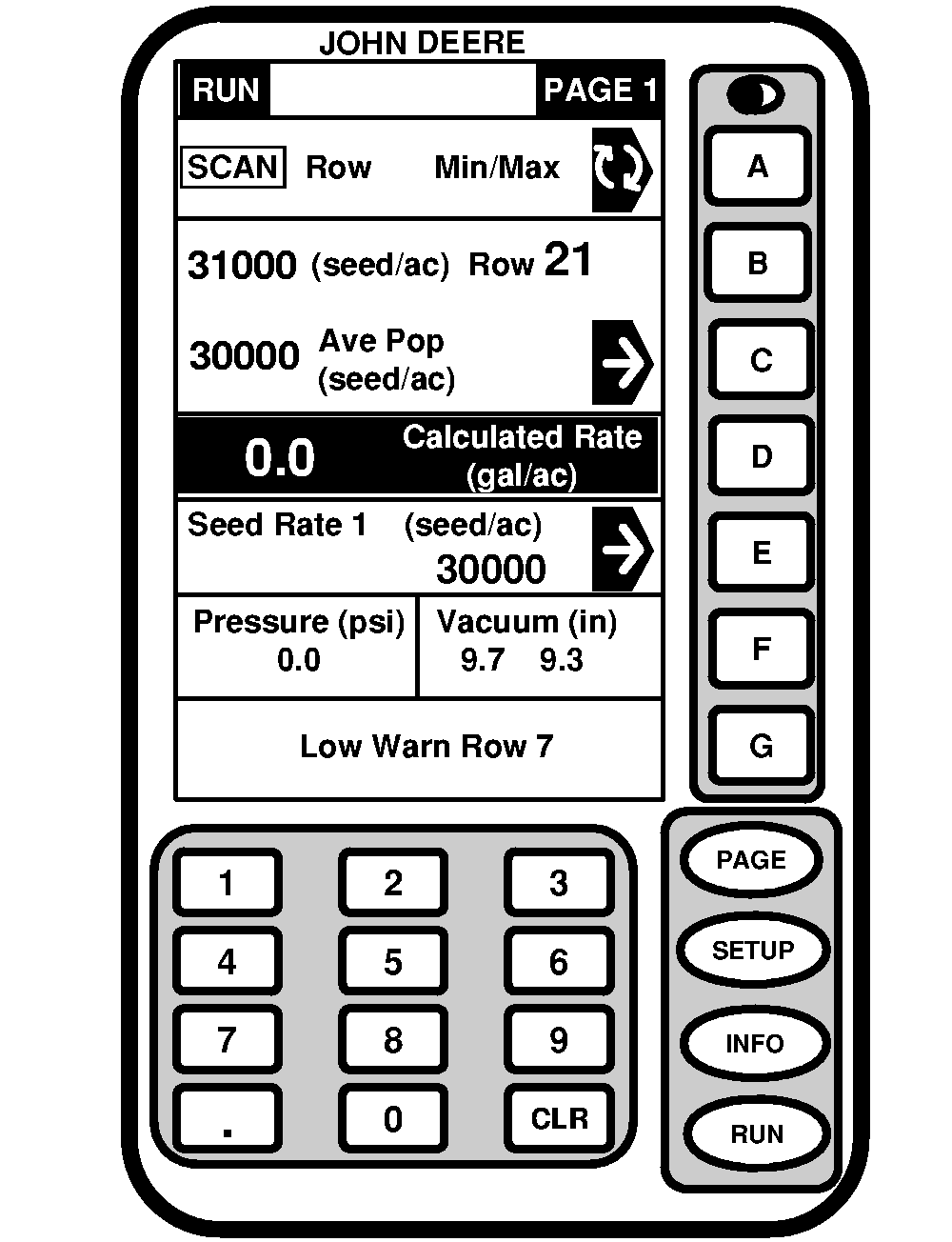

A50223

SEEDSTAR is a trademark of Deere & Company

OUO6074,00009CB -19-27APR05-1/2

NOTE: The vacuum level will be slightly lower during tractor and pump start-up.

Set vacuum level as follows:

1. Electro/Hydraulic SCV's: Push SCV lever to forward detent position to start blower. Let oil warm up for 15 minutes.

Mechanical SCV's: Pull lever back against rubber stop. Let oil warm up for 15 minutes.

2. Lower machine so CCS fan turns on and allows row unit hoppers to fill to operating level. This should take under 30 seconds.

3. With machine lowered in plant position, drive tractor forward approximately 5 m (15 ft) to fill seed cells.

IMPORTANT: The hydraulic hook-up procedure will determine whether the tractor flow control valve or planter flow control valve will be used to control vacuum level. See specific vacuum hook-ups in Attaching Machine section.

4. When traveling at desired planting speed, adjust vacuum meter flow control valve until vacuum-gauge indicator points to vacuum level listed on Vacuum Level Chart.

See Attaching Machine section for more information.
