Leveling the Machine (Two-Point Hitch)

Periodically check machine to be certain frame (A) and planting units (B) are running parallel to the ground.

Lower machine on level ground until machine frame is approximately parallel to the ground when in planting position.

A-Frame
B-Planting Unit

OUO6074,00009D7 -19-08JUN05-1/3

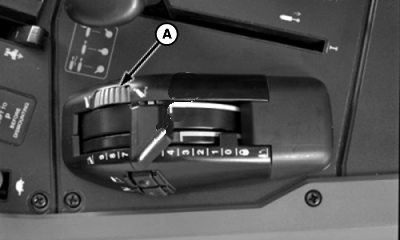

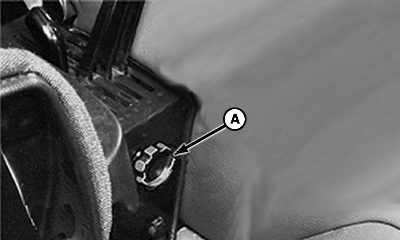

Set rockshaft adjustable depth stop (A) to control or limit proper rockshaft operating height.

NOTE: Before lowering machine into planting position and measuring frame height, set adjustable downforce systems to zero pressure.

Lower machine to planting position with bottom of main frame tube approximately 510 to 560 mm (20 to 22 in.) above the ground. If frame is not 510 to 560 mm (20 to 22 in.) see ADJUSTING FRAME HEIGHT in this section.

A-Depth Stop

OUO6074,00009D7 -19-08JUN05-2/3

When planting, parallel arms (A) should be parallel to the ground or angled slightly upward toward frame.

Periodically check machine to be certain planting units are running level.

If center of the machine is too high or low, it may be necessary to rephase hydraulic wheel lift system.

A-Parallel Arms
