Tighten Centerframe Trunnion Blocks
|
|
|
1.
Raise machine into field raised or road transport position.

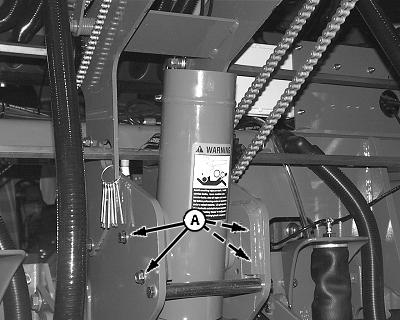

2. Tighten trunnion cap screws (A) on both sides of each center frame lift cylinder to specification. |
Specification
|
OUO6074,0000AE9 -19-25MAR04-1/1 |
