Installing and Removing Seed Tubes
A53216
A53298

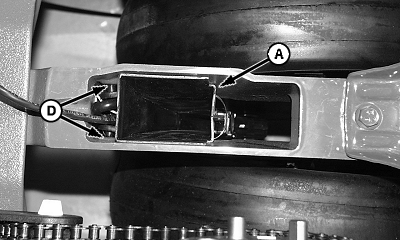

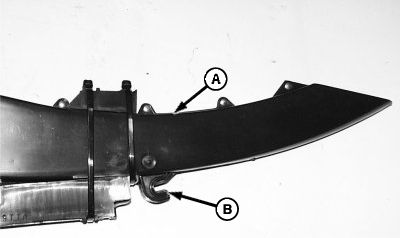

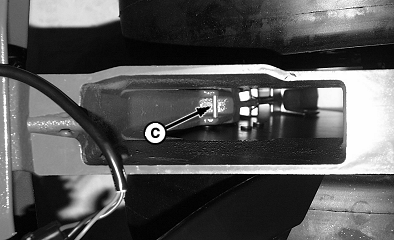

1. To install seed tube, insert seed tube (A) into planting unit so the hook (B) locks on alignment pin (C).

2. Position seed tube so tabs (D) lock into holes.

3. Connect monitor harness to sensor harness.

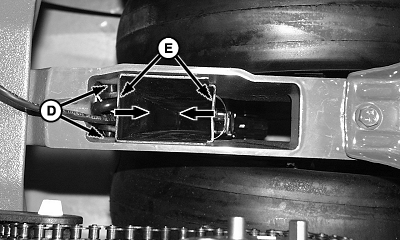

4. To remove seed tube, squeeze front and rear (E) of tube with fingers until tabs (D) release from casting and pull upward.


A-Seed Tube
B-Hook
C-Pin
D-Tabs
E-Front and Rear
