Changing Vacuum Meter Brush

1. Open vacuum meter and remove seed disk.

2. Firmly hold brush holder (A) against meter housing with one hand while pulling brush from holder with other hand.

3. Install appropriate brush.

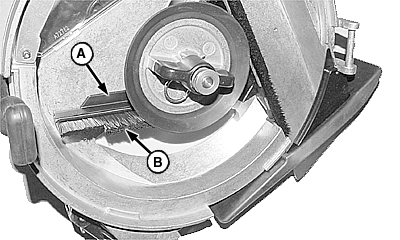

  • Install single notch brush (B) when double eliminator is NOT used.

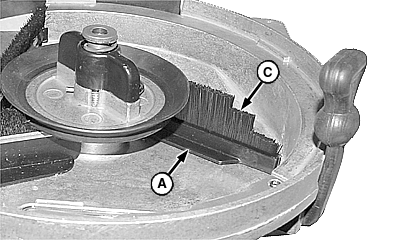

  • Install double notch brush (C) when double eliminator IS used.


A-Brush Holder

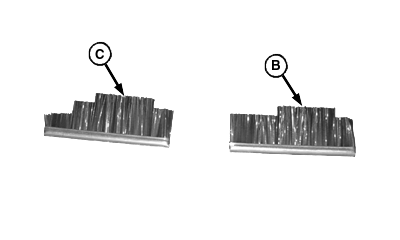

B-Single Notch Brush
C-Double Notch Brush

A53448
A53449
A53450

OUO6074,0000C91 -19-13MAY04-1/1
