Setting CCS Tank Pressure

causym CAUTION: Do not operate CCS blower without tank lids installed. Harmful chemicals can be blown into face and seed lines will plug.

To set the tank pressure proceed as follows:

1. Make sure tank lids are closed.

IMPORTANT: Warm oil by running vacuum blowers (if equipped) or install a hose loop in SCV per tractor operator's manual. DO NOT use CCS fan to warm oil or seed delivery hoses can plug.

2. Warm oil for 15 minutes prior to setting pressure.

3. Lower machine, leave SCV in constant retract detent position.

4. Open CCS fan flow control valve handle (A) (counterclockwise) until seed starts flowing to row hoppers.

IMPORTANT: DO NOT exceed 20 in. of tank pressure or damage can occur to the hydraulic motor and seed tank lids.

NOTE: If low warnings are received while planting and row meters are empty, increase tank pressure by two inches until meters stay full.

5. When hoppers are full and machine is not moving, adjust pressure according to crop being planted. See CCS Tank Pressure Settings table below.

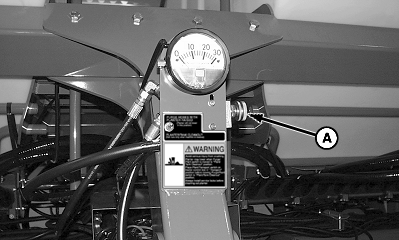

A54384


A-Flow Control Valve Handle

OUO6074,0000CD5 -19-30JUN05-1/2

Product Pressure in Inches of Water Nozzle Insert Small Seed Discharge Elbow (Vacuum Only)
Soybeans 14 NO NO
Small Corn Over 4400 seeds/kg (2000 seeds/lb) 12 NO NO
Medium Corn Between 4400 and 2640 seeds/kg (2000 and 1200 seeds/lb) 14 NO NO
Large Corn Less than 2640 seeds/kg (1200 seeds/lb) 16 NO NO
Small Popcorn Over 9900 seeds/kg (4500 seeds/lb) 12 YES Optional
Small Popcorn Less than 9900 seeds/kg (4500 seeds/lb) 12 NO NO
Sweetcorn 12 NO NO
Cotton 12 YES Optional
Sorghum 10 YES YES
Sunflowers 6 NO NO
