Operating CCS System When Planting Sorghum, Cotton and Small Popcorn

IMPORTANT: Remove nozzle inserts before switching to crop with larger seed. Larger seed will not come out of tanks with nozzle inserts installed. Tanks will then have to be drained, nozzle inserts removed, and refilled.

NOTE: Nozzle is recommended for sorghum and small popcorn and some small cotton seed.

1. Install nozzle inserts (A) over all nozzles prior to filling tank.

NOTE: Changing elbows is optional for small popcorn and cotton.

2. Remove elbow (B) with small holes from mini hoppers.

3. Install elbow (C) with slotted holes in mini hoppers.

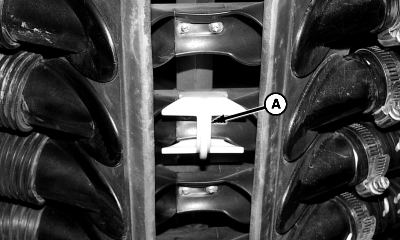

A-Nozzle Inserts (A73214)

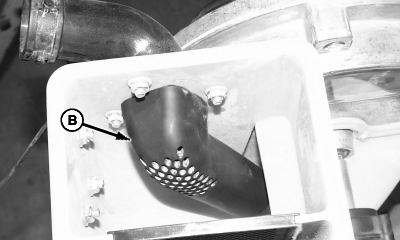

B-Elbow (A75164)

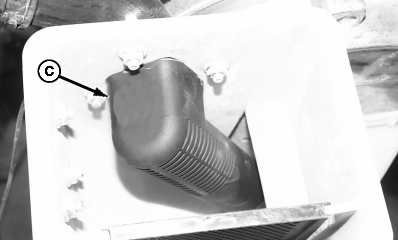

C-Elbow (Sorghum) (A75165)

OUO6074,0000E34 -19-30JUN05-1/1
