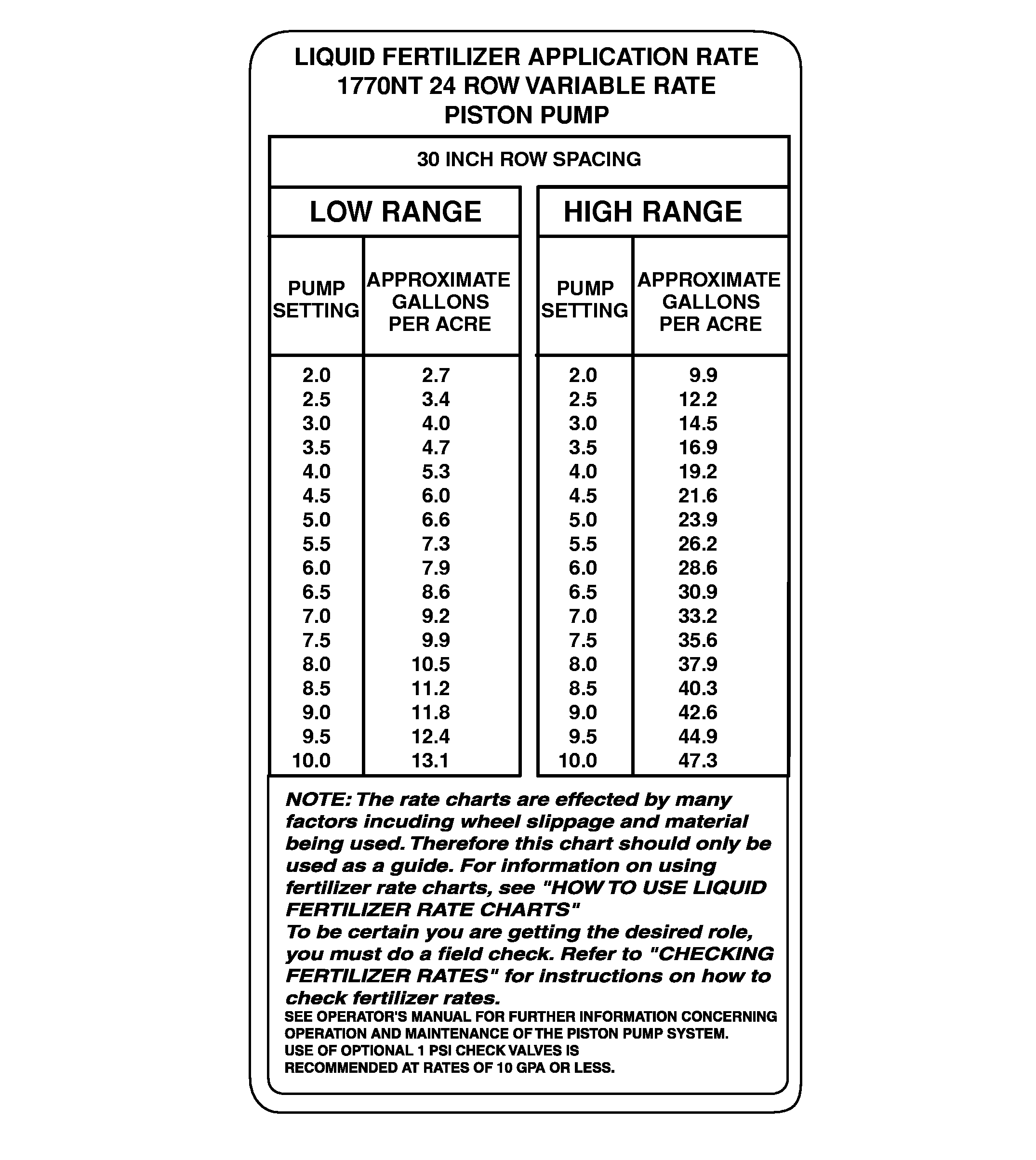

Liquid Fertilizer Rate ChartsIMPORTANT: A field check must be done to verify the application rate. Refer to CHECKING FERTILIZER RATES in this section. This system is NOT recommended for use with suspension fertilizers. Rate charts (A) are affected by many factors such as wheel slippage and material used. Use charts only as a guide. |
|
| 1700 SERIES PLANTER FERTILIZER MATRIX - TO ENSURE ROW TO ROW RATE CONSISTENCY FOR LIQUID FERTILIZER ATTACHMENT WITH PISTON PUMP | ||
|---|---|---|
| DELIVERY SYSTEM | FRAME MOUNTED SINGLE DISK OPENER | LESS OPENERS |
| LOW PRESSURE FLOW DIVIDER DELIVERY SYSTEM | NO ORIFICE OR NOZZLE REQUIRED. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES RECOMMENDED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
FLOW DIVIDERS ARE NOT NECESSARY WITH SYSTEMS USING ORIFICES OR NOZZLES. STANDARD 6.9 kPa (0.07 bar) (1 psi) CHECK VALVES REQUIRED FOR APPLICATION RATES OF 94 L/ha (10 gpa) OR LESS. SHORTEST DELIVERY HOSE MUST NOT BE ANY SHORTER THAN 1/2 THE LENGTH OF THE LONGEST HOSE. |
OUO6435,0001A36 -19-27MAY05-1/2 |
|
OUO6435,0001A36 -19-27MAY05-2/2 |
