Solenoid Identification

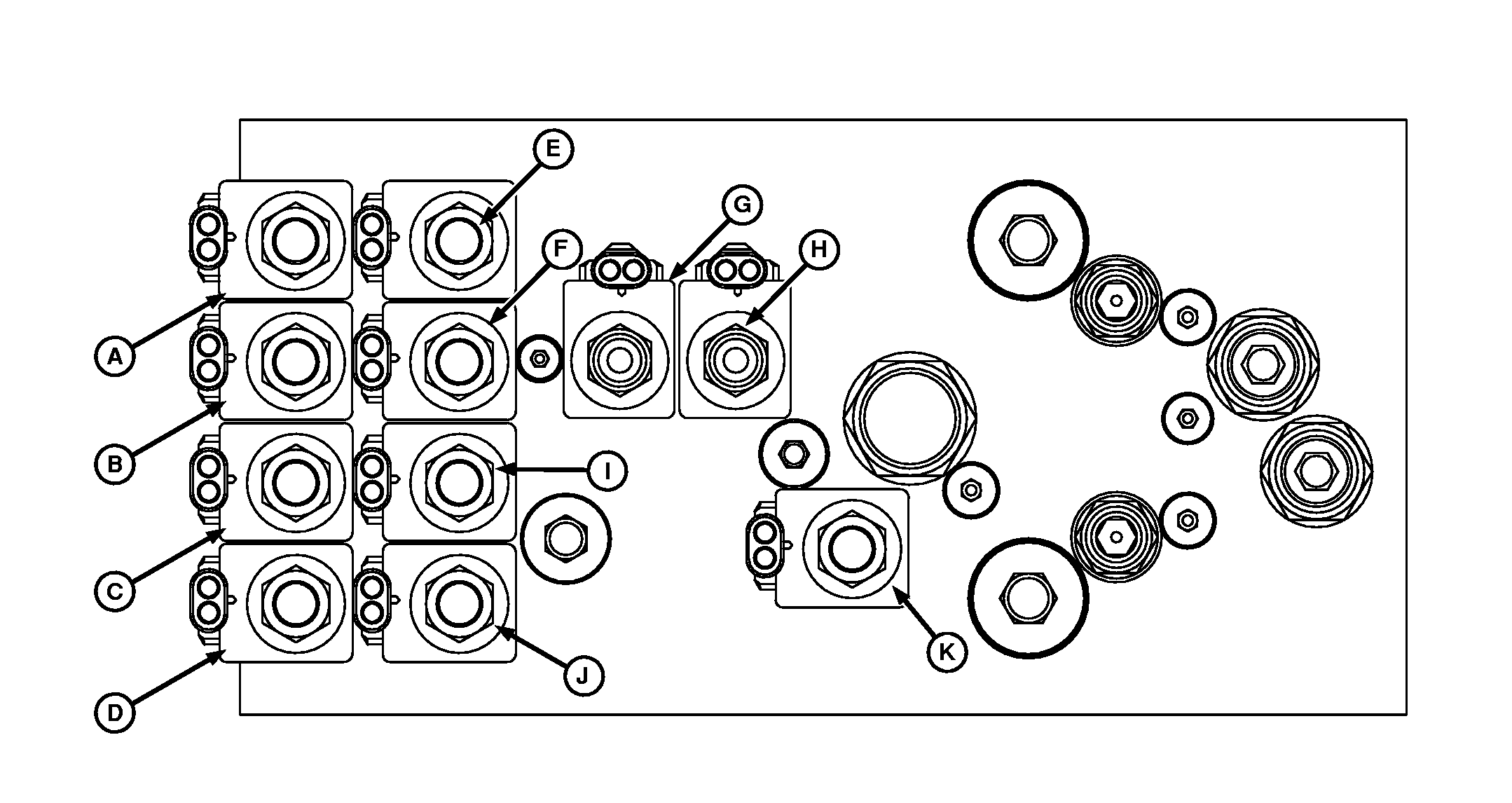

A53486

Center Solenoid and Valve Assembly


A-Y18
B-Y22
C-Y24


D-Y20
E-Y23
F-Y19


G-Y9
H-Y8
I-Y21


J-Y25
K-Y1

OUO6435,0001A50 -19-14JAN04-1/3


A-Y4L
B-Y3L

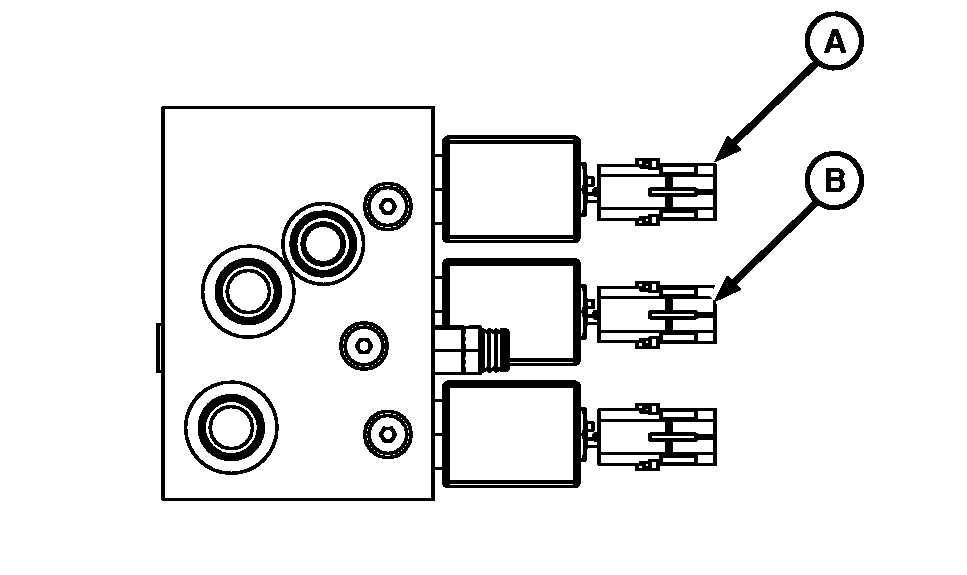

A53661

Left Winglet Valve Assembly

OUO6435,0001A50 -19-14JAN04-2/3


A-Y4R
B-Y3R

A53660

Right Winglet Valve Assembly

OUO6435,0001A50 -19-14JAN04-3/3
