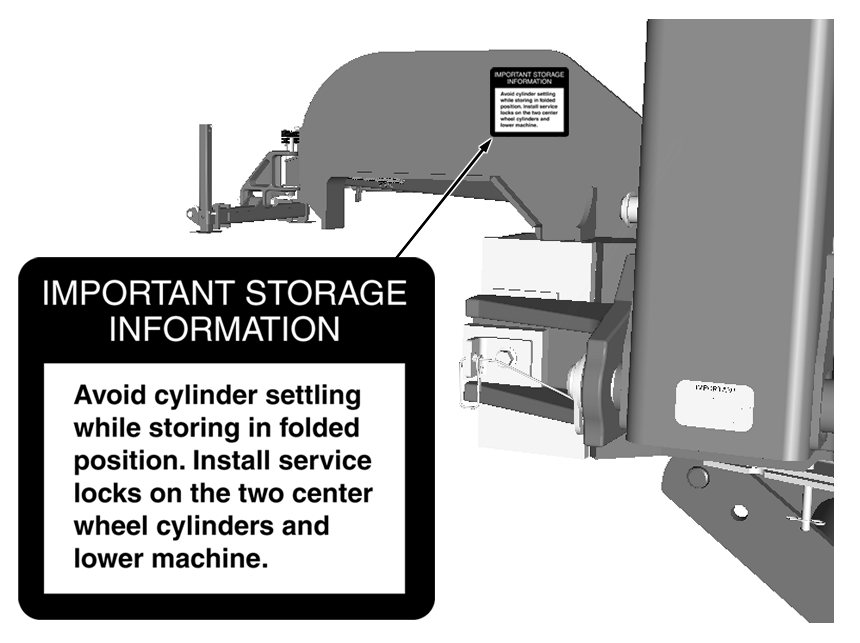

IMPORTANT: If the machine will be stored in the folded transport position, some settling of the hydraulic system may occur. If machine is going to be stored in this position, install service locks on center two main frame wheels and lower machine onto service locks.

Remove service locks (A) from storage position. Main frame locks are stored on the CCS ladder frame rails.

A-Service Locks

OUO6435,0001BB1 -19-13MAY04-2/6

IMPORTANT: Avoid cylinder damage. Tab on service lock must be on top, facing cylinder.

Install service locks (A) onto both outer main frame wheel cylinders. Install pin and hair pin to hold in place.

Lower machine onto service locks.

A-Service Locks

OUO6435,0001BB1 -19-13MAY04-3/6

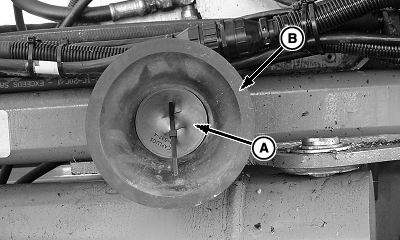

Install all plugs (A) into vacuum manifold bells (B).

A-Plug
B-Manifold Bell

OUO6435,0001BB1 -19-13MAY04-4/6

Paint all parts which are chipped or worn and require repainting.

IMPORTANT: High pressure washers can damage electrical components, bearings, hoses and/or hoppers if direct contact is applied. Use caution, if power washing machine.

Clean the machine thoroughly to remove dirt and trash which would hold moisture and cause rusting.

Lubricate the machine as outlined in the Lubrication section, and grease exposed cylinder rods.

Thoroughly lubricate chains with John Deere Multipurpose Spray Lube, TY6350, at the beginning of the idle period.

Empty and clean seed hoppers.

Inspect the machine for worn or broken parts. See your John Deere dealer during the off season so that parts or service can be acquired when the machine is not needed in the field.

Store the machine in a clean, dry place with the planting unit gauge wheels and firming wheels out of the sun.

Place handle for closing wheel downforce in long slot to relieve tension on closing wheels.

OUO6435,0001BB1 -19-13MAY04-5/6

Remove seed disks from meter. (See VACUUM METER INSPECTION AND SERVICE in Service section.)

Clean meter housing, meter chamber and seed disk with mild detergent and soft brush.

Store disks (A) in shipping box or hang on wall.

IMPORTANT: Be sure to store seed disks away from extreme heat or direct sunlight. Do not leave disks in the meters during the off season. Do not store under heavy parts.

Clean air manifold system. (See CLEAN AIR MANIFOLD SYSTEM in Service section.)

Check for hydraulic leaks.

Check and clean out manifolds.

Check and clean vacuum meters.

Check and replace necessary vacuum meter seals.
