Planting Seed Plots with CCS Systems

NOTE: Due to the small quantity of seed being planted, removing the CCS system from operation and filling row units individualy is recommended.

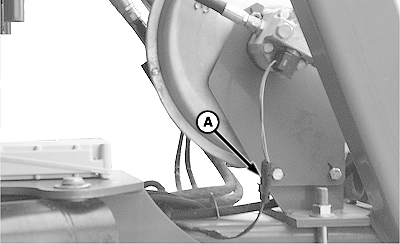

Disconnect harness connector (A) from CCS fan.

Fill row units individually instead of using CCS tanks.

A-CCS Fan Harness Connector

OUO6435,0001BB3 -19-17MAY04-1/1
