Install Double Eliminator Plate for ProMax 40, Small Sweet Corn, or Edible Bean Disks

There are two double eliminator plates available. The ProMax 40 and small sweet corn disks use the plate with the characters CORN stamped on the side. The edible bean disk only has the part number stamped on the side.

Install or change double eliminator plate as follows:

1. Unhook rubber strap (A) and open meter door.

2. Remove seed disk.

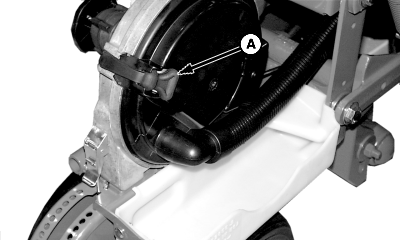

A-Rubber Strap

A49693

OUO6045,0000A1B -19-07AUG07-1/3

3. Remove screw (A), bushing (B), and existing plate (C). Save screw, bushing, and existing plate for reuse.

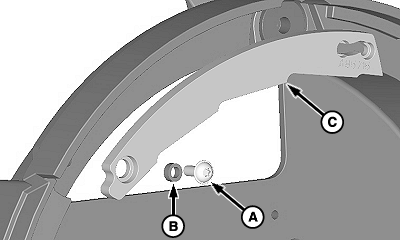

A-Screw
B-Bushing
C-Existing Plate

A60203

OUO6045,0000A1B -19-07AUG07-2/3

NOTE: Edible bean plate is not shipped with machine. Order from your John Deere™ dealer.

4. Position plate (A) over stud (B).

IMPORTANT: Make sure screw and bushing are fully tightened against housing.

5. Install bushing (C) and screw (D). Tighten screw to specification.

Specification

Double Eliminator Plate Screw -Torque 2 N·m (20 lb-in.)

6. Install seed disk.

7. Close and latch meter door.

A60204

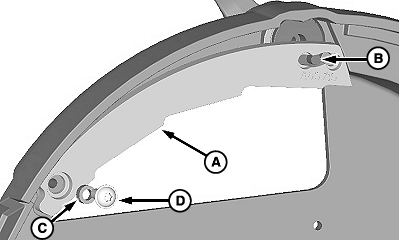

A-Plate, Edible Bean or Corn
B-Stud
C-Bushing
D-Screw

OUO6045,0000A1B -19-07AUG07-3/3
