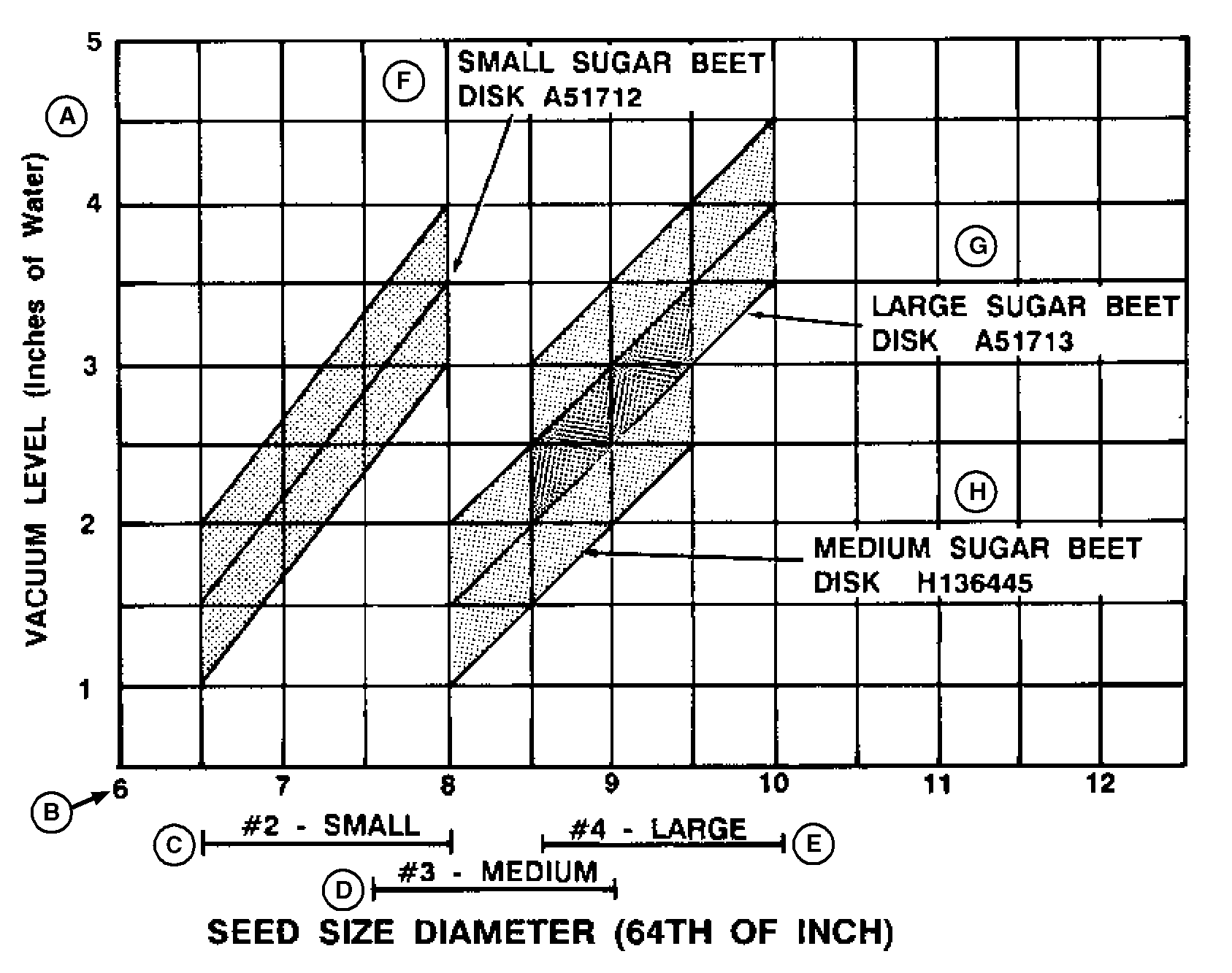

A-Vacuum Level (Inches of Water)
B-Seed Diameter (per 64th of an inch)

C-Small Seed
D-Medium Seed

E-Large Seed
F-Small Sugar Beet

G-Large Sugar Beet
H-Medium Sugar Beet

IMPORTANT: The proper vacuum level must be calculated for each seed size.

Use information from seed supplier to calculate seeds per pound.

IMPORTANT: Vacuum levels are a starting point. Perform a field check and adjust level to obtain proper population.

EXAMPLE: If bag label indicates a medium seed diameter of 7.5/64 in. to 9/64 in. Set vacuum level between 1.5 in. to 2.5 in. with Medium Sugar Beet Disk.

OUO6074,0001020 -19-03AUG07-1/1
