7000, 8000, 9000 Series Tractors Without Power Beyond-Multiple Motor

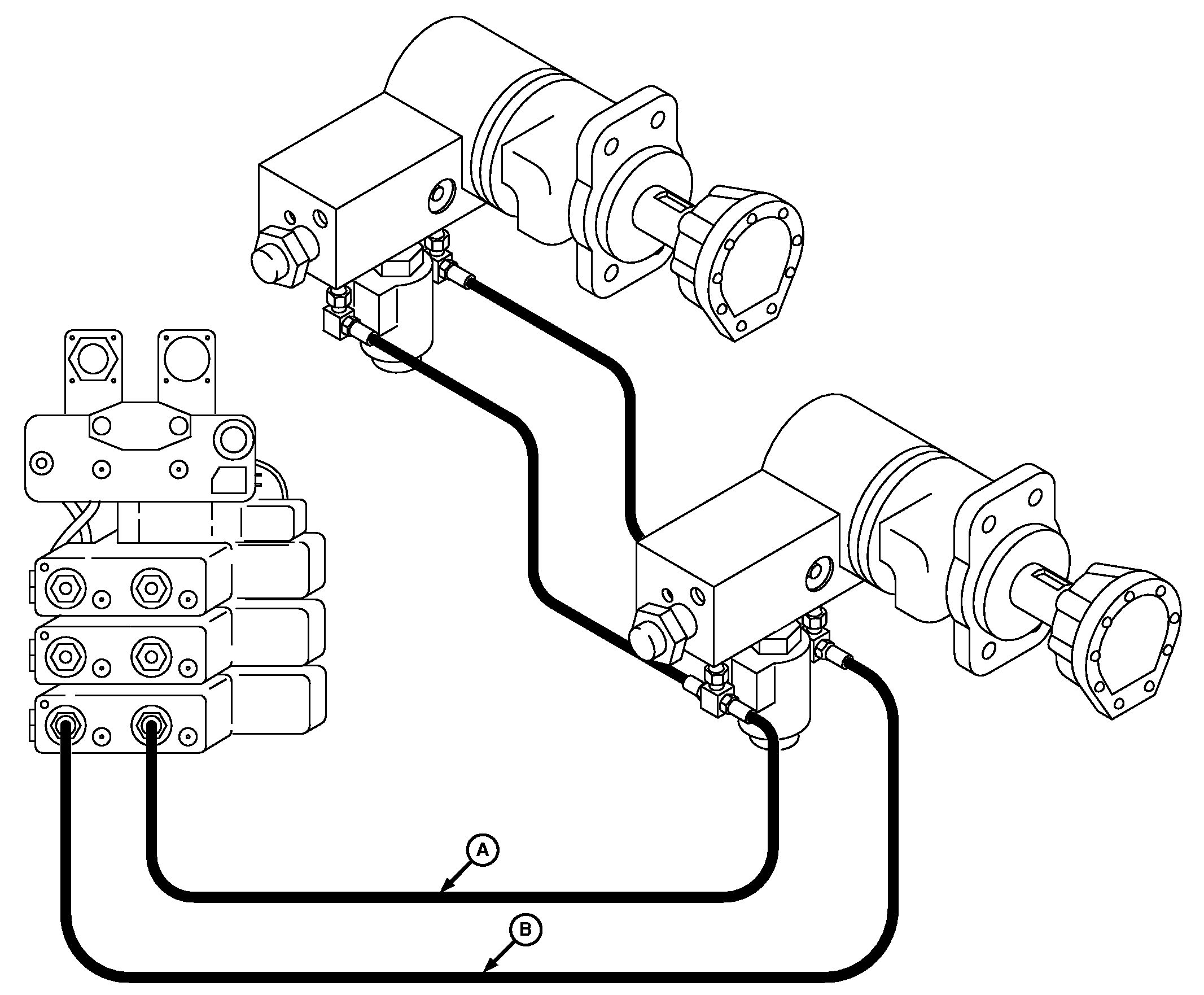

A46896


A-Variable Drive Pressure Hose

B-Variable Drive Return Hose



1. Attach pressure hose (A) from variable rate motor to right-hand (cylinder retract) side of SCV.

2. Attach return hose (B) from variable rate motor to left-hand (cylinder extend) side of SCV.

OUO6074,000058B -19-09AUG02-1/1
