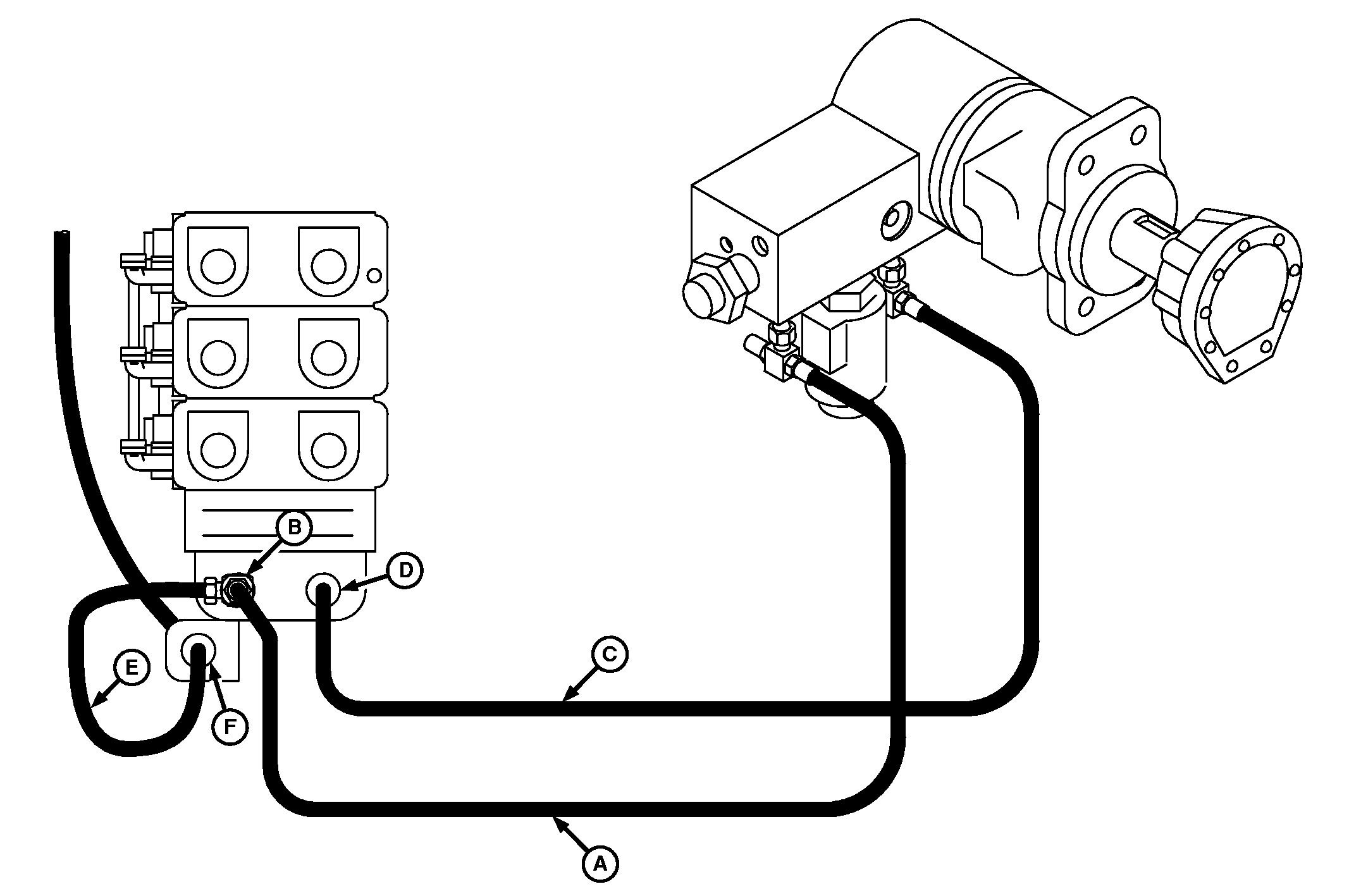

A-Variable Drive Pressure Hose
B-Power Beyond Pressure Port

C-Variable Drive Return Hose
D-Power Beyond Return Port

E-Jumper Hose

F-Power Beyond Load Sense Port

IMPORTANT: Power beyond can not be used on 7000 series when attached to a 1770NT with CCS, because CCS fan is routed to motor return. Do not "T" other functions to CCS fan hoses or motor seal damage will occur.

1. Attach variable drive pressure hose (A) and tee fitting to power beyond pressure port (B) on tractor SCV.

2. Attach variable drive return hose (C) to power beyond return port (D).

3. Attach jumper hose (E) to power beyond load sense port (F) and pressure hose tee fitting.

OUO6074,000058C -19-09AUG02-1/1
