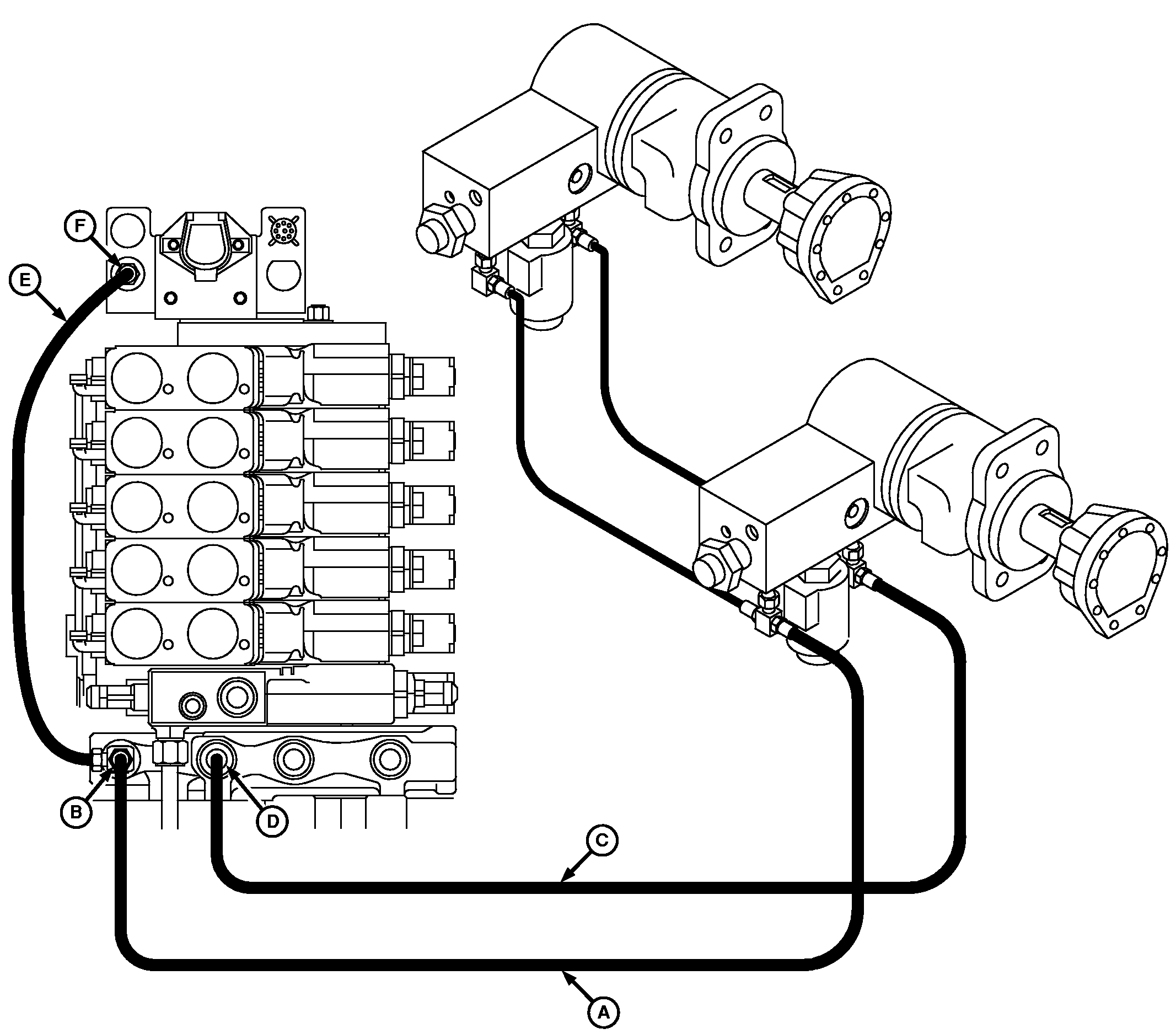

9000 Series Tractors With Power Beyond Load Sense-Multiple Motor

A46900


A-Variable Drive Pressure Hose
B-Power Beyond Pressure Port


C-Variable Drive Return Hose
D-Power Beyond Return Port


E-Jumper Hose


F-Power Beyond Load Sense Port

1. Attach variable drive pressure hose (A) and tee fitting to power beyond pressure port (B).

2. Attach variable drive return hose (C) to power beyond return port (D).

3. Attach jumper hose (E) to power beyond load sense port (F) and pressure hose tee fitting.
