Adjust Motion Sensor Gap-1770NT, 1790, and Deere/Bauer

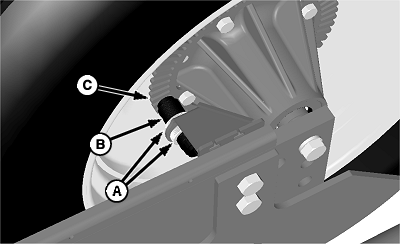

IMPORTANT: Avoid damage to sensor. Rotate wheel to ensure no contact between disk (C) and end of sensor (B).

Loosen lock nuts (A) and adjust position of wheel motion sensor (B) until space between end of sensor and disk (C) is 2-4 mm (0.08-0.16 in.). Tighten lock nuts.

A-Lock Nuts
B-Sensor
C-Disk
