Disabling When Not In Use

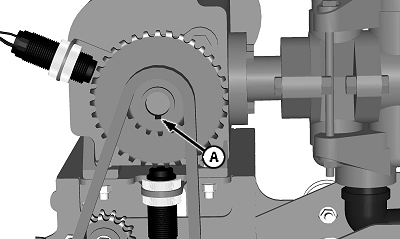

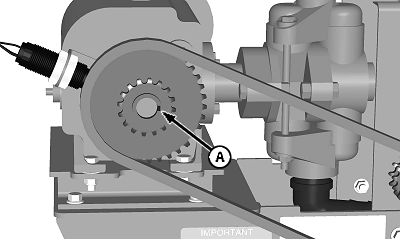

IMPORTANT: Double pump systems, such as the 1770NT 24 row planter, must have keyways (A) timed 90 degrees to each other when pump chains are reinstalled or machine damage will result.

Remove drive chain from pump whenever fertilizer system is not being used.

A-Keyway

OUO6074,0000C1A -19-08APR04-1/1
