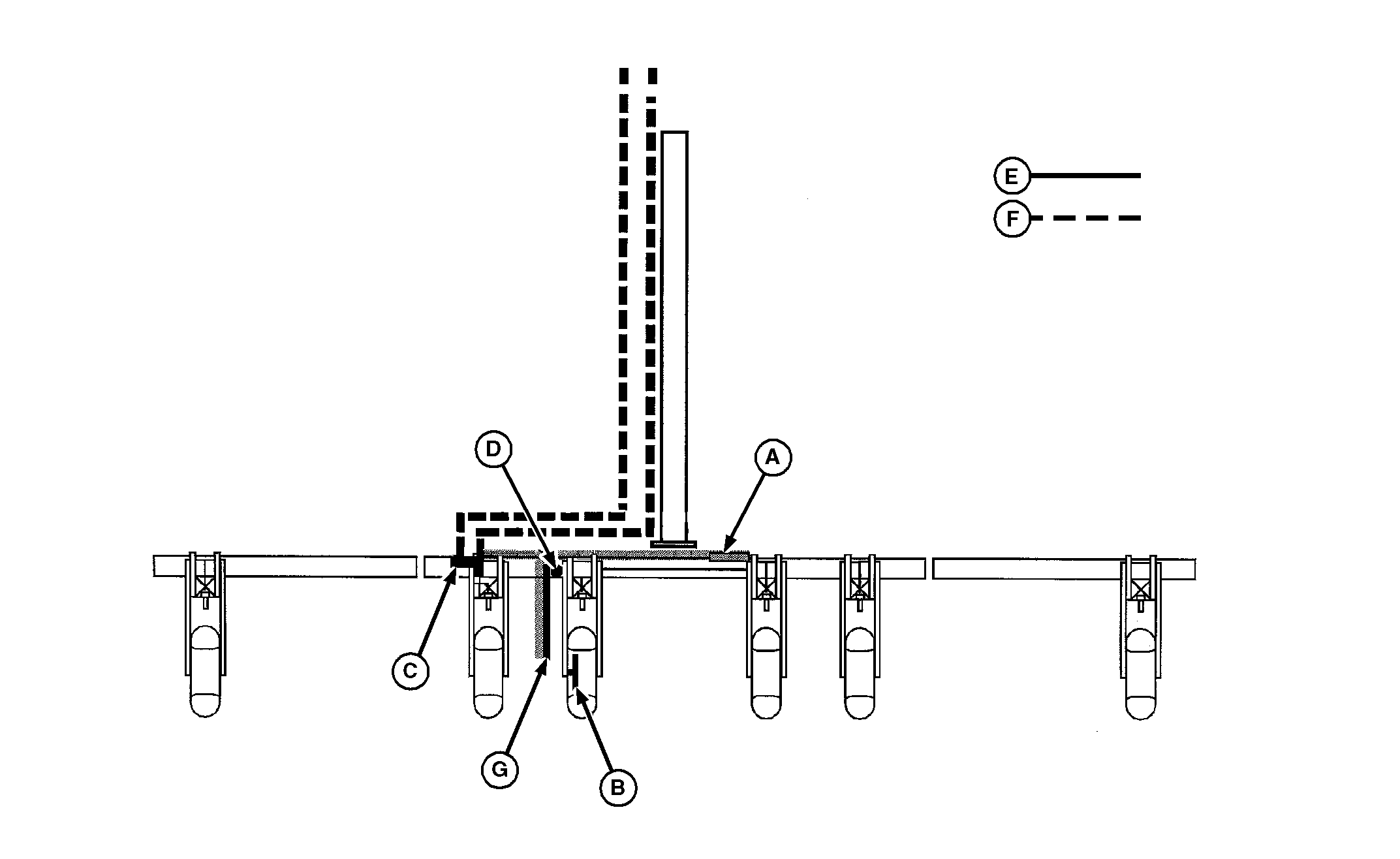

Component Locations-1760/1760NT Planters with Single Motor

A61081

A-Controller
B-Motion Sensor

C-VRD Motor
D-Height Sensor

E-Electrical
F-Hydraulic

G-Shield
