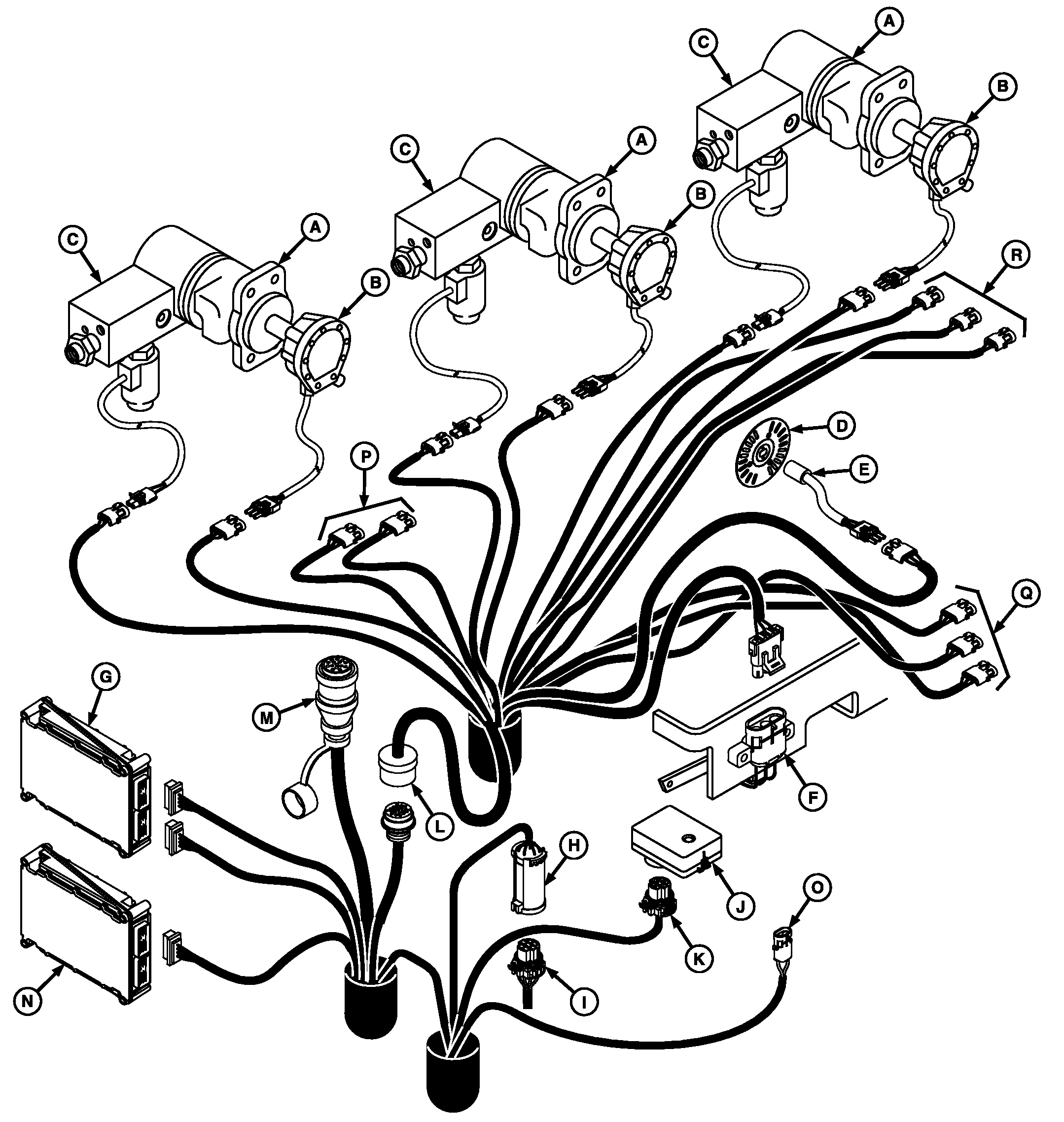

A-Motor
B-Speed Sensor
C-Speed Controller Valve
D-Sensor Disk
E-Wheel Motion Sensor
|
F-Height Sensor
G-Master Wedgebox
H-CAN IN
I-CAN Extension Harness
J-Terminator
|
K-CAN OUT
L-37-Pin Connector
M-57-Pin connector
N-Slave Wedge Box
|
O-Mod Power
P-Fertilizer Pressure
Q-Half-Width
R-Vacuum Sensors
|
